1984 BMW 325e 'S54 Swap'

Asking $40,000

The Build

1984 BMW 325e 'S54 Swap'

Offering considerably more power than it did with its original fuel-sipping ‘Eta’ engine, this E30 325e is powered by a properly built S54 from an E46 M3. The engine has been bored out slightly to displace 3.28 liters, and custom higher compression pistons have been fitted along with high lift cams to create a bit more power and give it a more eager demeanor. An extensive list of worthy upgrades have been fitted to this E30 to take it to the next level, and we are confident that it all comes together in a magical way on the backroads.

Mileage:Unknown
Title:Clean
Engine:3.3L Inline-6
Trans:6-Speed Manual
Exterior:Alpine White
Interior:Black Leather
Seller:Brent S.
Type:Private Party
Location:Aliso Viejo, CA

Modifications

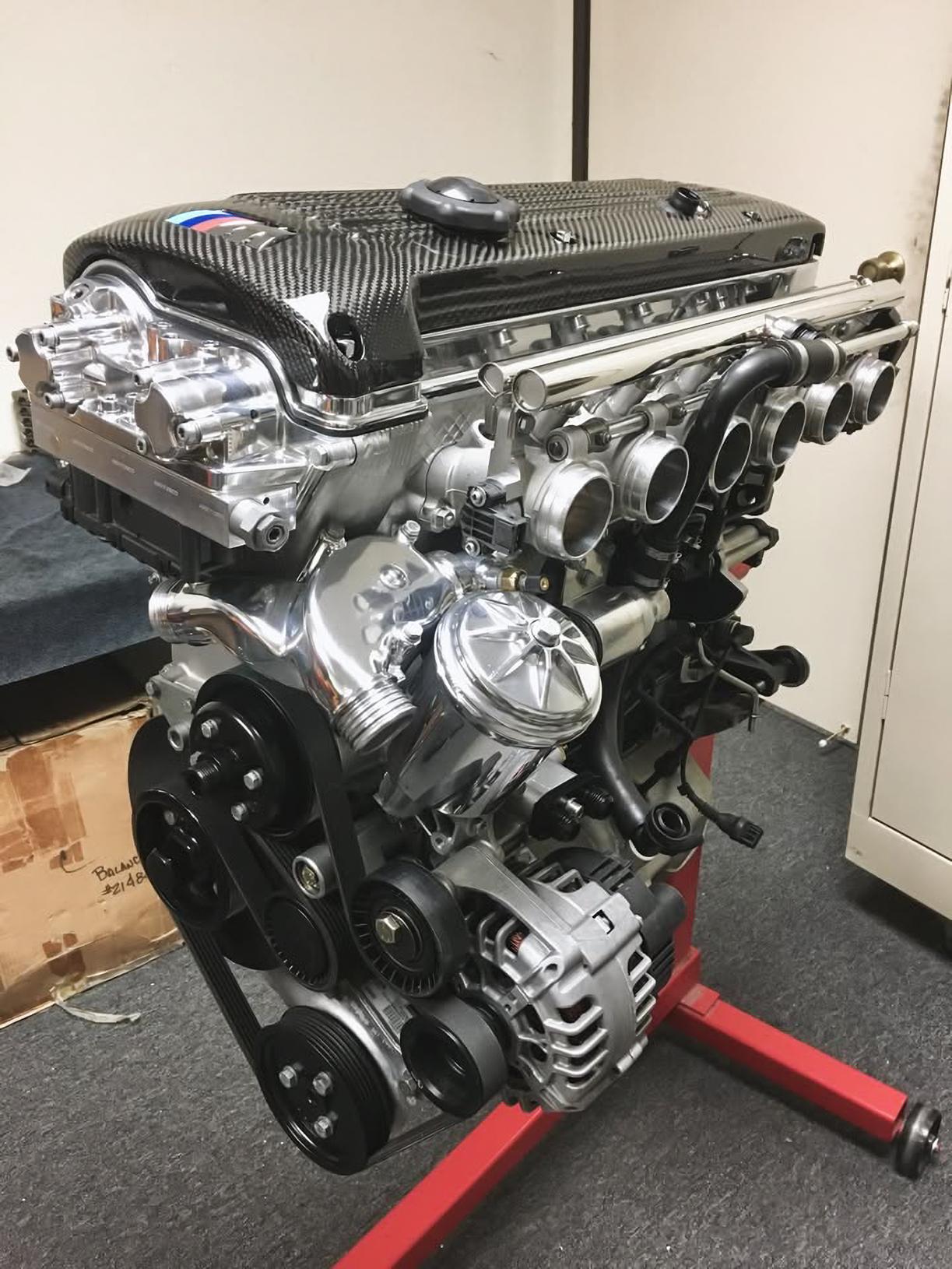

•Fully Built BMW S54B32 Engine (~1,700 Miles)
•BMW S54B32 Block Bored To 87.5mm (3.28L)

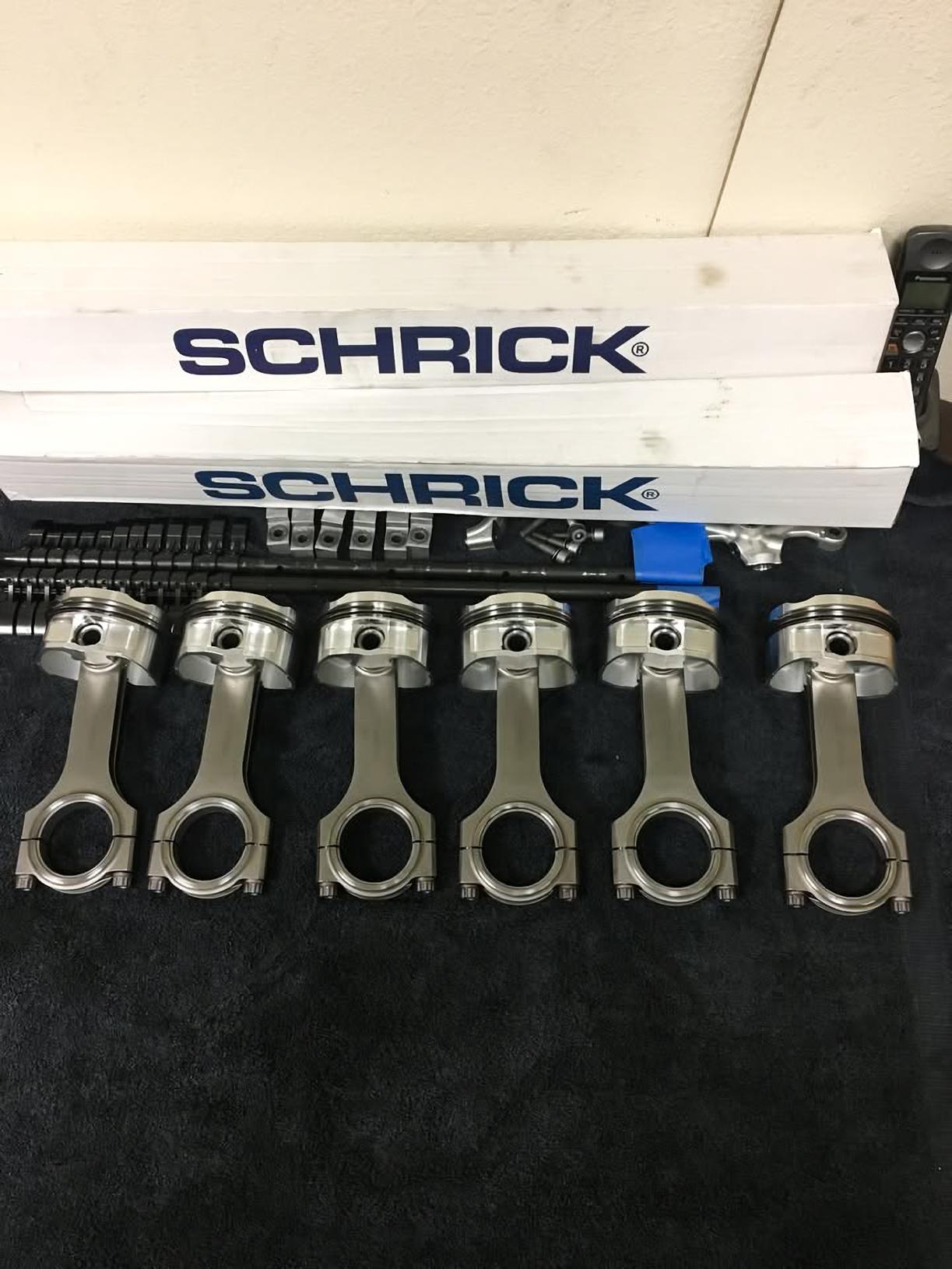

•Custom CP Pistons (12.4:1 Compression)
•Carrillo Connecting Rods
•WPC-coated OEM BMW Connecting Rod Bearings
•King Racing Main Bearings
•Schrick 288 / 280 High-lift Camshafts (14.0mm Lift)
•Carbon-coated Cam Followers
•Supertech Valvetrain
•Supertech Shimless Lash Cap Conversion

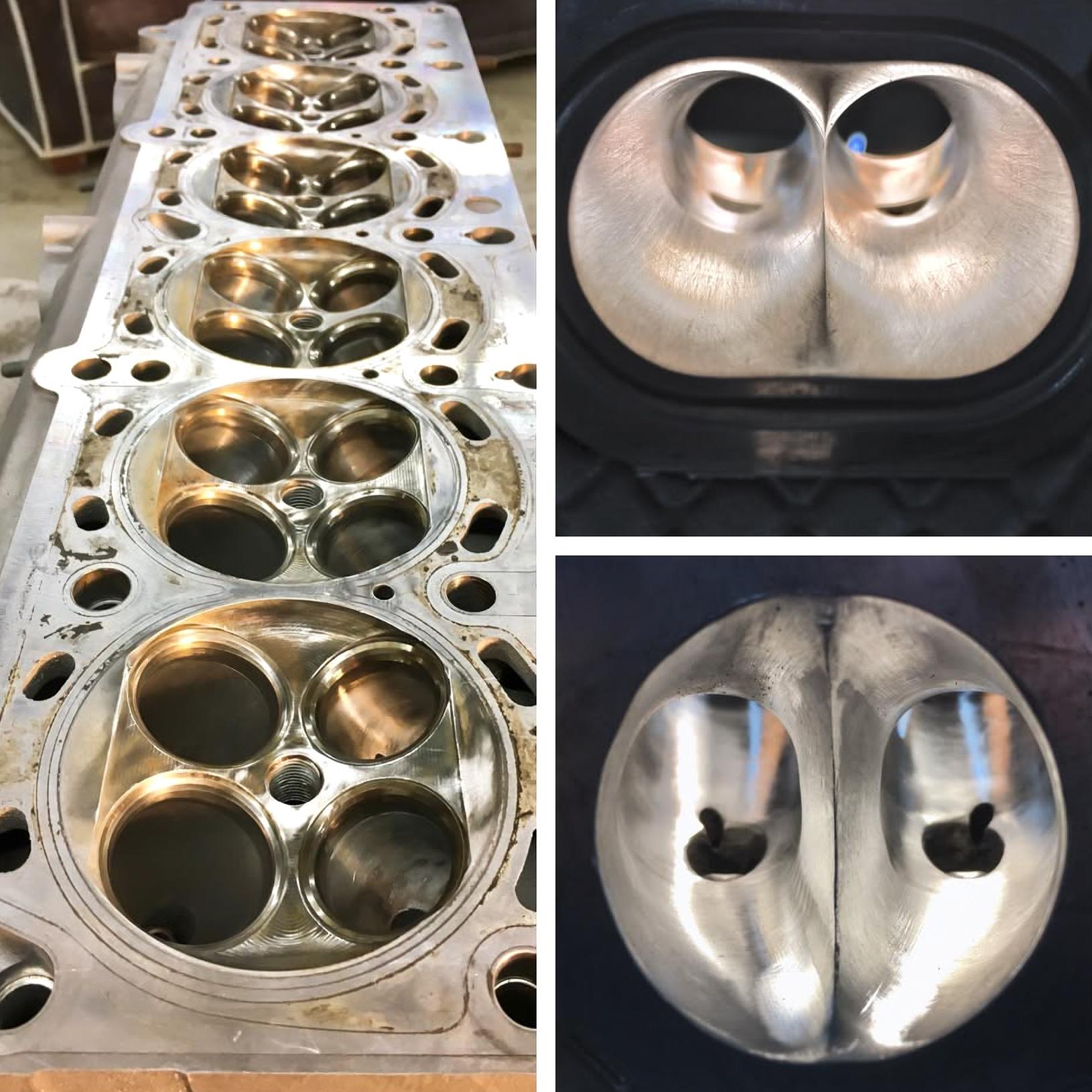

•Lightly Ported Cylinder Head (Primarily Exhaust Side)
•Cometic Head Gasket
•VAC Variable Camshaft Timing Hub
•Lang Racing Variable Camshaft Timing Hub Bolts
•Beisan Variable Camshaft Timing Rattle Kit
•Tack-welded Oil Pump Sprocket

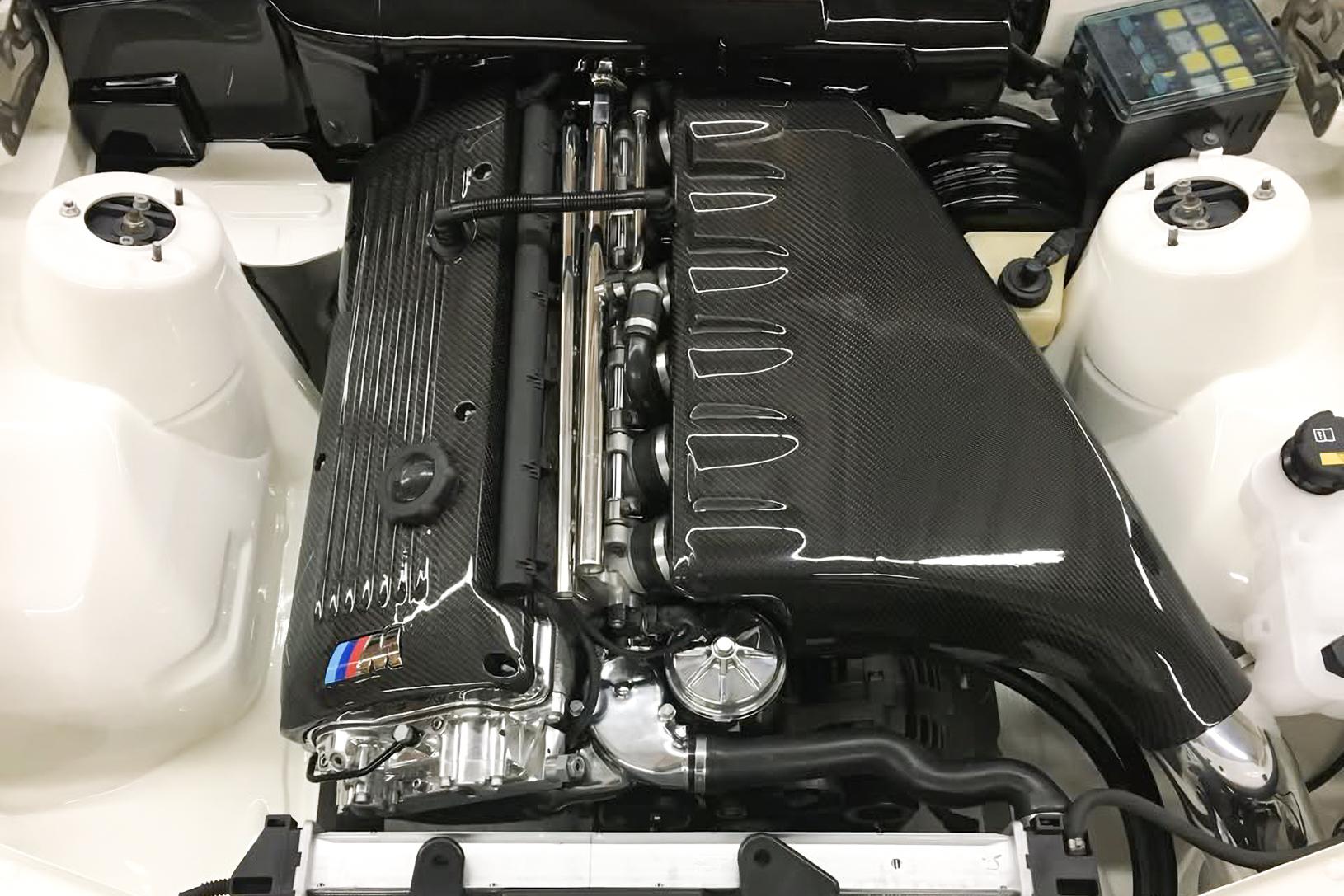

•Custom Carbon Fiber Airbox W/ 4" Inlet
•K&N Air Filter
•Lightly Ported Individual Throttle Bodies
•MSS54HP Engine Control Module
•Manifold Absolute Pressure Sensor
•Intake Air Temperature Sensor
•Custom Engine Tune

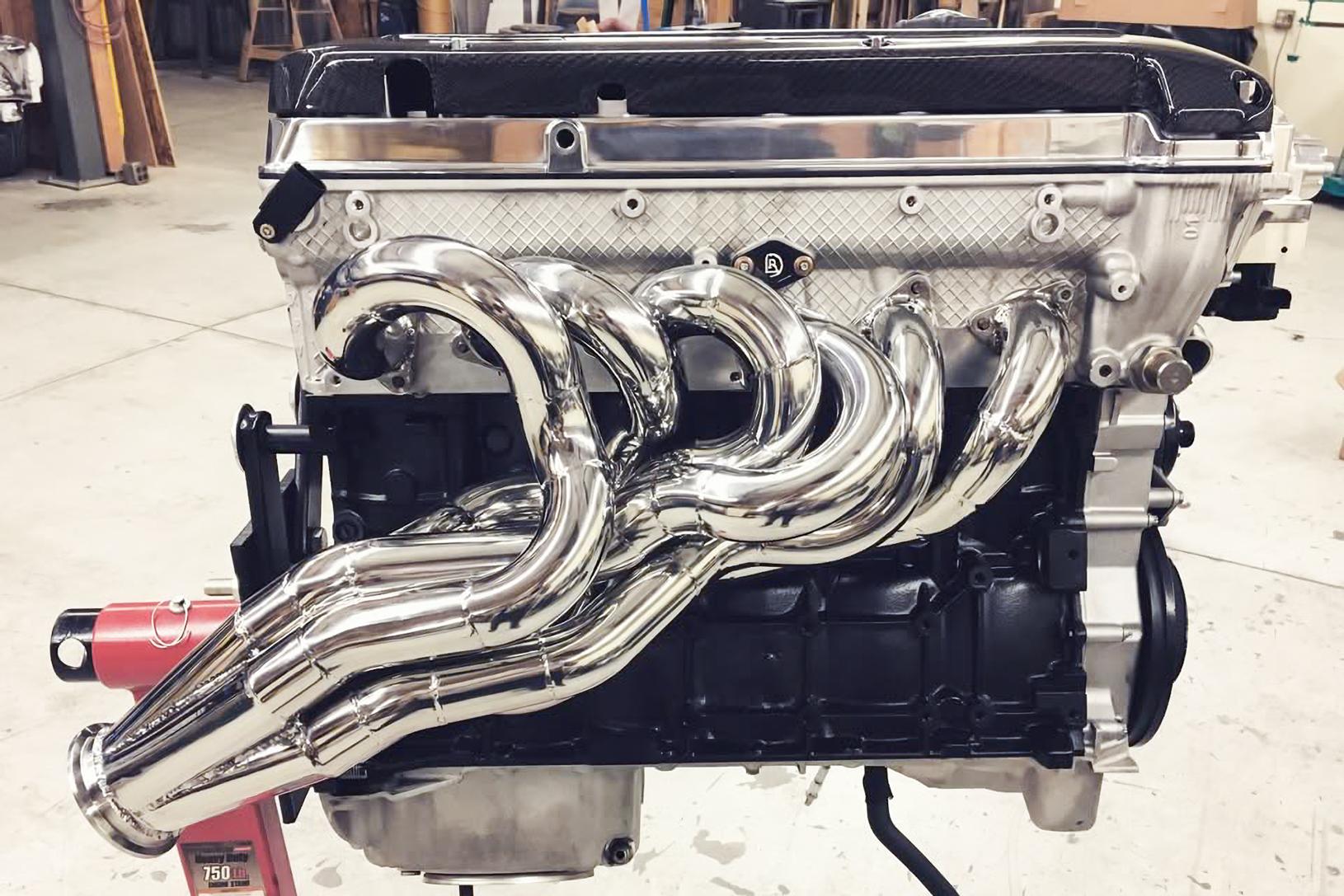

•Custom 6-to-1 Exhaust Header
•Extrude-honed Exhaust Header
•Lang Racing Exhaust Gas Recirculation Block-off Kit
•Custom Oval 3.5" Exhaust System
•Walbro GSL392 Inline High-pressure Fuel Pump (255 Liters Per Hour)
•Setrab 19-row Oil Cooler
•Z4 M Coolant Pipe
•Behr Z3 M Radiator
•SPAL 16" Engine Control Module-controlled Cooling Fan
•E46 M3 Pulse-width Modulated Fan Controller
•Engine Control Module Mounted In OEM Location W/ Extended Wiring Harness
•Custom Oil Pressure Sensor
•Custom Oil Temperature Sensor
•Custom Dashboard Coolant Temperature Sensor
•Custom Engine Control Module Coolant Temperature Sensor
•External Safety Coolant Temperature Sensor
•Innovate LC-2 Wideband Oxygen Sensor
•Polished Valve Cover
•Polished Oil Filter Housing
•Getrag 420G Six-speed Manual Transmission
•Custom Transmission Mount
•Custom Chassis-mounted Shifter
•3.25:1 Limited-slip Differential (40% Lockup)
•Custom Front Subframe (OEM Steering Rack Location / Minimal Oil Pan Modification)
•Low-mileage E46 M3 Steering Rack
•Bilstein Sport Front Shocks
•Koni Rear Shocks
•Eibach Lowering Springs
•Ground Control Front Coilover Sleeve Kit
•Ireland Engineering Sway Bars
•Custom Lower Front Chassis Brace W/ Integrated Jacking Point
•Adjustable Rear Subframe W/ Eccentric Adjusters
•Serrated Rear Subframe Adjustment Kit
•Lemförder Front Control Arms
•Powerflex Front Control Arm Bushings ("Lollipop")
•Ireland Engineering Camber Plates
•5x120 Five-lug Conversion
•Four-wheel Custom Brembo Brake Setup (BMW Dakar Yellow)
•BMW M3 Competition Package Brake Rotors
•Custom Parking Brake Adaptation
•Ireland Engineering / Garagistic Braided Brake Lines
•Custom Fiberglass Fender Flares
•Late-model Plastic Bumpers
•Aftermarket European Bumper Trim (Marker Light Delete)
•Late-model Front Valance
•Late-model Rear Valance Cover
•Painted Cowl Drain Area
•Painted / Satin-clear-coated Wiper Arms
•Painted / Satin-clear-coated Cowl Vents
•Shaved Engine Bay W/ Extra Holes Welded
•Internally Coated Aprons
•Internally Coated Frame Rails
•Minimized Engine Bay Wiring Harness
•Front Wiring Harness Tucked Into Apron / Core Support
•Rebuilt US Ellipsoid Headlights W/ Aftermarket European Glass
•Custom Light-emitting Diode Taillights
•Authentic Rieger Front Lip
•Tinted / Clear-coated Front Turn Signals
•LED Front Turn Signal Bulbs
•Shaved Hood (Windshield Washer Nozzle Delete)
•Painted / Satin-clear-coated Aftermarket European Grilles
•Taurus Side Skirts
•Custom Carbon Fiber Side Splitters
•Painted / Satin-clear-coated Side Trim
•Original Pop-out Rear Windows
•Gutted Trunk
•Spare Tire Well Delete
•Rear Seat Delete
•Floor Sound-deadening Tar Removed

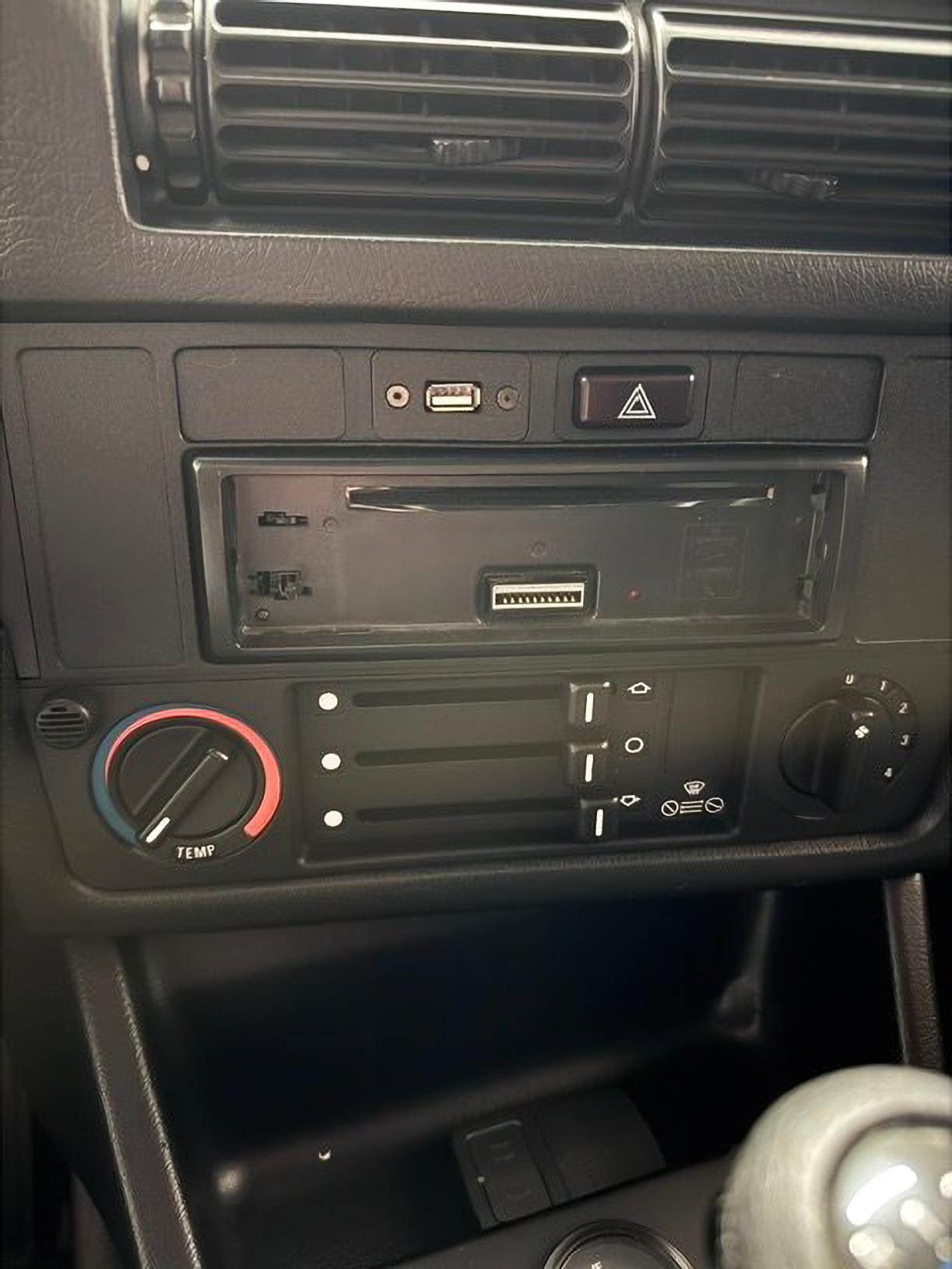

•European Heating / Ventilation / Air Conditioning Panel (Air Conditioning Delete)

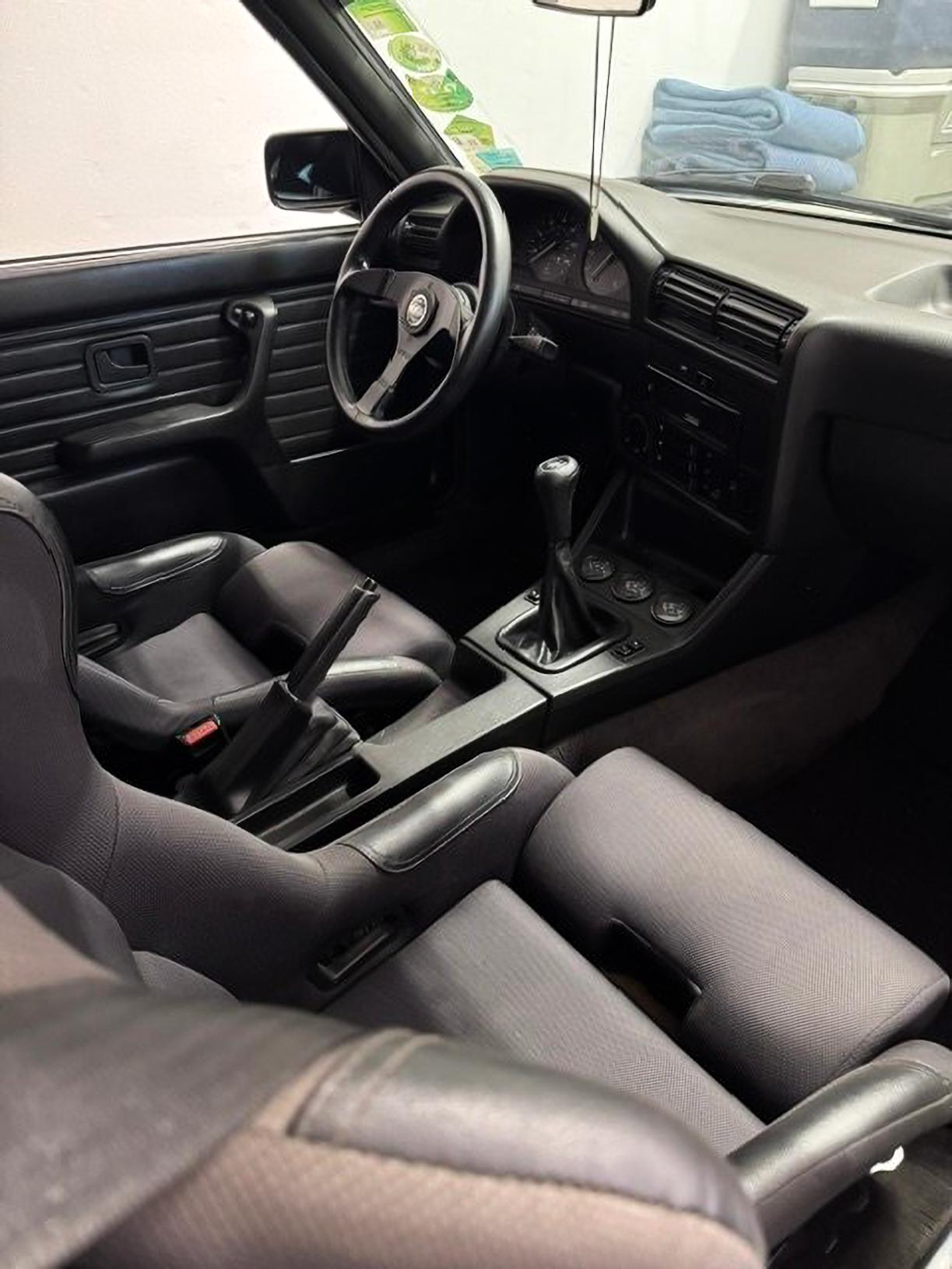

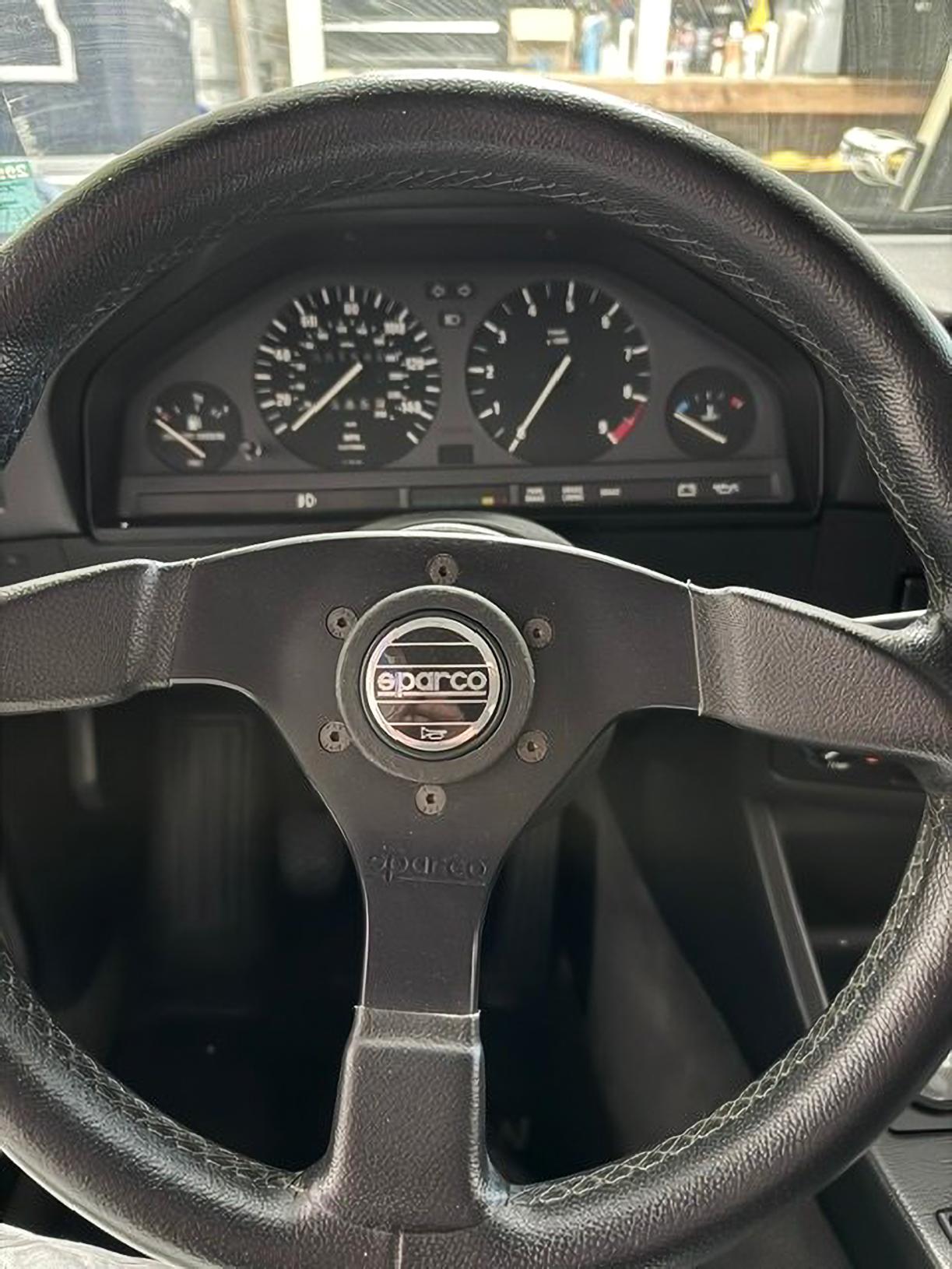

•Sparco Steering Wheel
•BavRest 9,000 RPM Tachometer

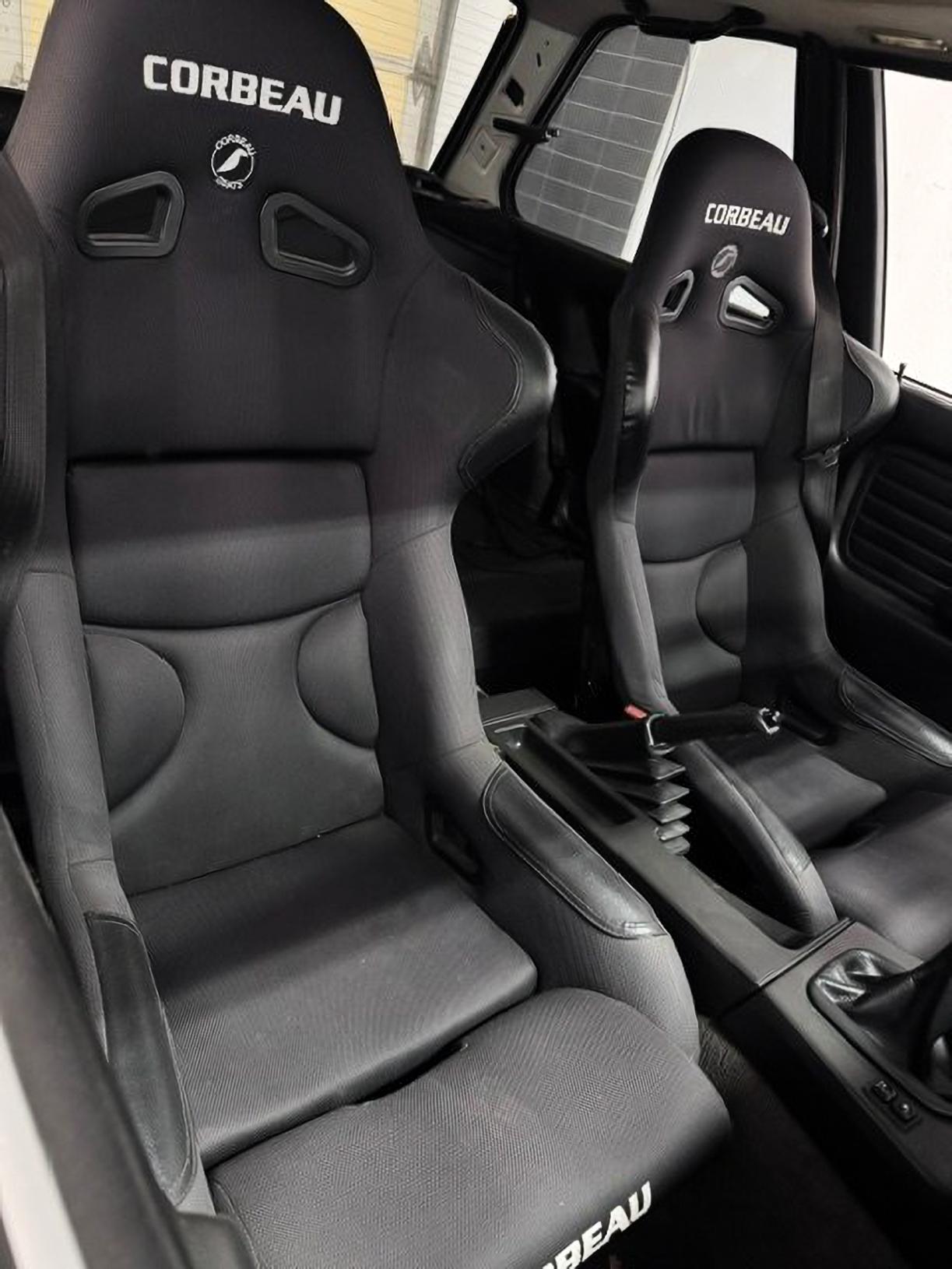

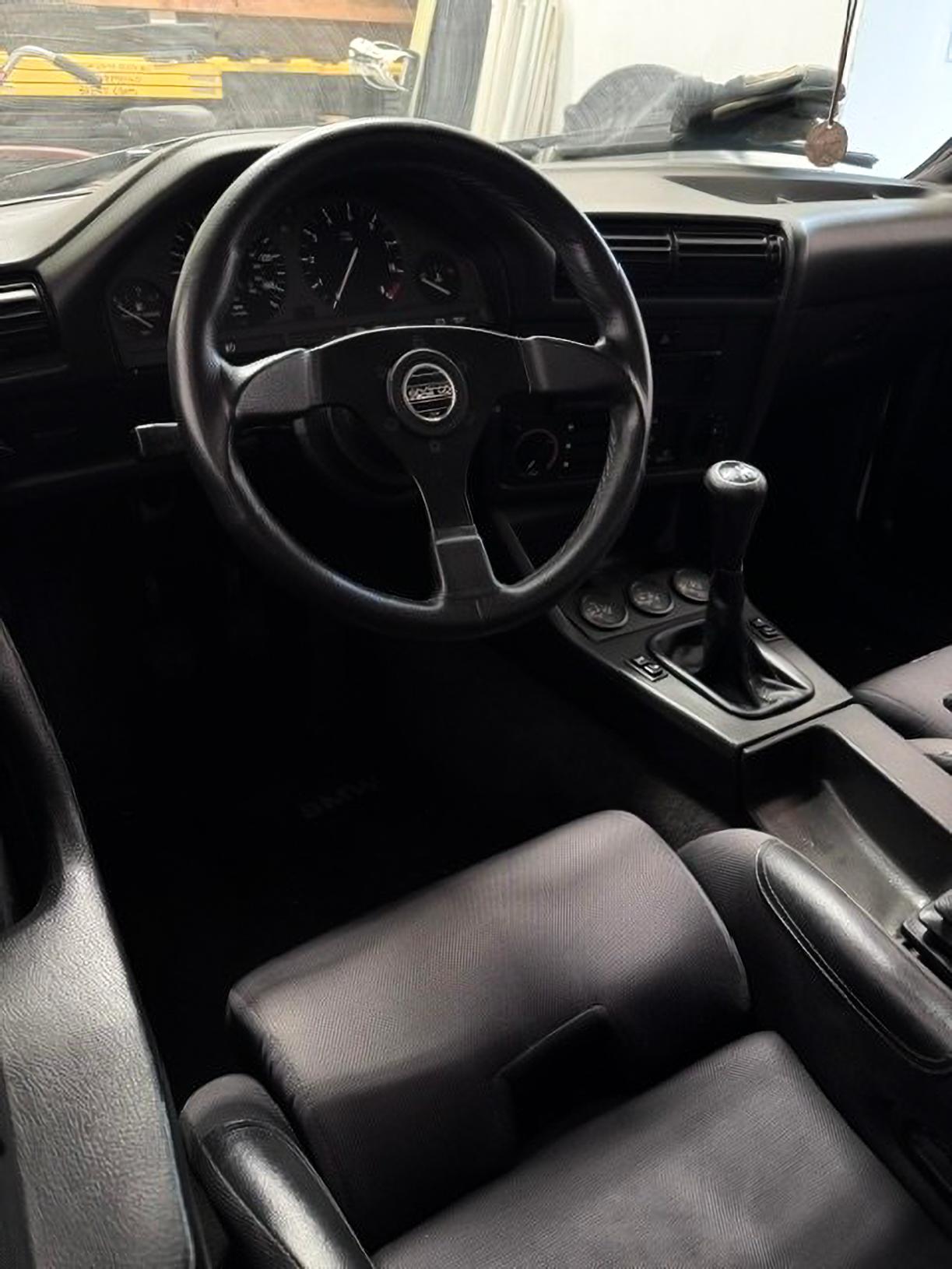

•Corbeau Bucket Seats
•Floor-mounted Seat Brackets
•Seat Slider Delete

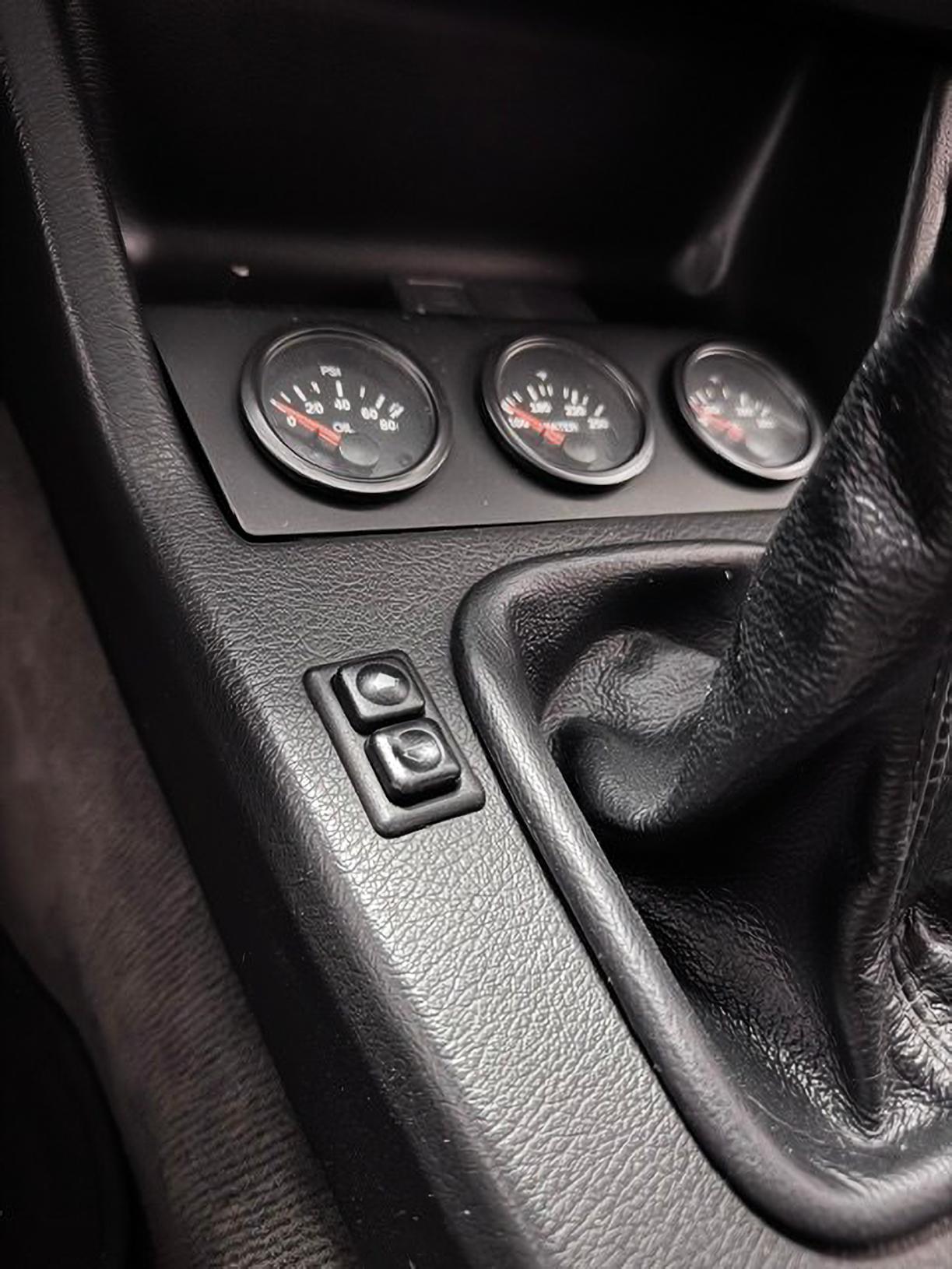

•Garagistic Center Console Gauge Pod
•Coolant Temperature Gauge
•Oil Temperature Gauge
•CCW Custom Stainless ARP Wheel Hardware

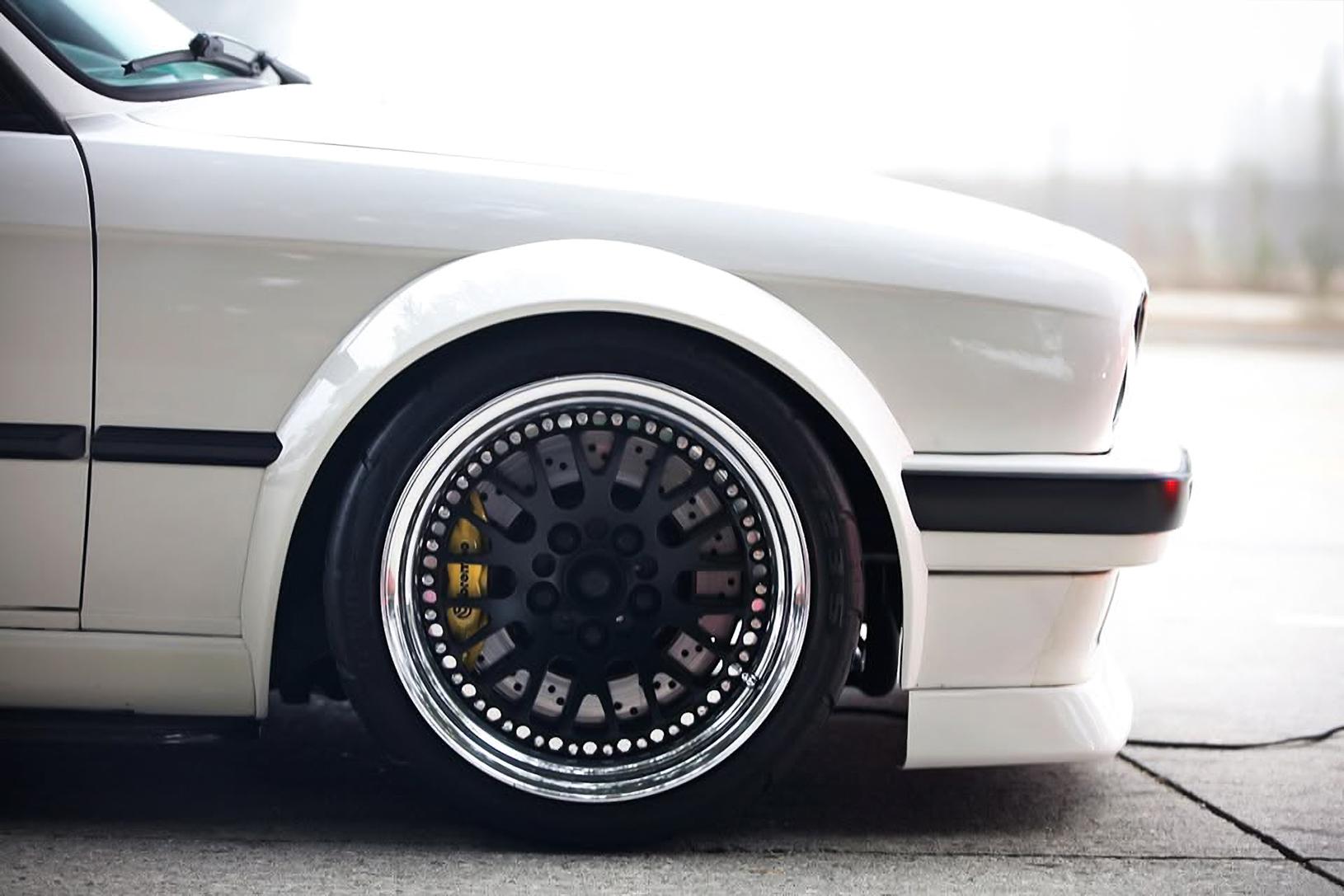

•255/35R17 Achilles 123S Tires
•17x10" / 17x10.5" CCW Classic Race Wheels
