The Build
2022 Toyota GR86 'Turbo K24 Swap'
Overview
Showing just 10k miles, this GR86 addresses power concerns with a trusty Honda K24 motor paired with a substantial turbocharger. A highly capable Garrett G25-660 ball bearing turbo works with a high-flow fueling system, which are all tied together by a Haltech Elite ECU. A lightweight flywheel and aluminum driveshaft reduce parasitic losses, and an upgraded radiator and added oil cooler help keep temperatures in check under demanding conditions. This appears to be a proper build and we would love to give it a go on some of our favorite twisty bits of tarmac.
- 10,000
- Clean
- 2.4L Turbo Inline-4
- 6-Speed Manual
- Trueno Blue
- Black
- JF1ZNBE18N9757422
- Shane C.
- Private Party
- Gilbert, AZ
- Available
Modifications

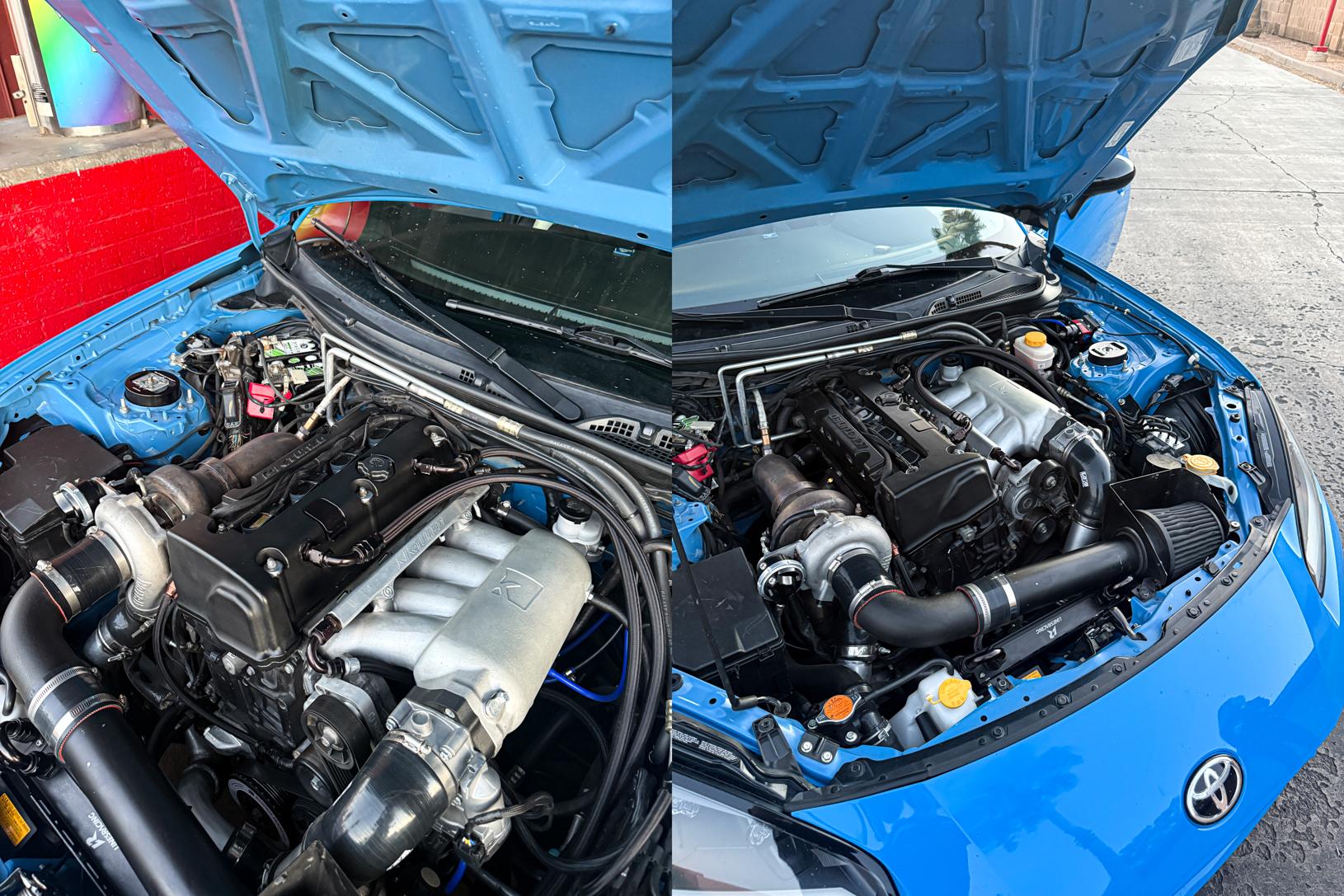

- •K24 RBB-4 Turbocharged Engine
- •Haltech Elite 1500
- •Haltech Input / Output Expansion Box
- •Haltech Controller Area Network Wideband
- •Haltech Ethanol Sensor
- •Haltech Fuel Pressure Sensor
- •Haltech Oil Pressure Sensor
- •K-Tuned Valve Cover
- •4Piston Racing CNC Oil Pump
- •50° Variable Valve Timing Pinned To 35°
- •ATI Super Damper Crank Pulley
- •KPower Baffled Oil Pan
- •KPower Intake Manifold
- •74mm Bosch Drive-by-wire Throttle Body W/ Anti-vibration Adapter
- •Radium Dual Fuel Pump W/ Anti-surge Basket
- •Walbro 525 Hellcat Fuel Pump
- •-6 AN Fuel Lines / Fittings
- •Aeromotive Fuel Pressure Regulator
- •K-Tuned Fuel Rail
- •Fuelab Fuel Filter
- •TF Works Turbo Manifold W/ Billet Collector
- •Garrett G25-660 Ball Bearing Turbo W/ Race Internal Wastegate
- •Vortec Water-to-air Intercooler
- •Shelby GT Water Pump
- •Frozen Boost Heat Exchanger
- •HKS Blow-off Valve
- •CSF Radiator
- •Remote Mount Full-size Oil Filter
- •CSF Oil Cooler
- •Remote Mount Full-size Oil Filter
- •CSF Oil Cooler
- •KPower Coolant Hose Adapter
- •Custom Exhaust (95db)
- •Antigravity Battery
- •KPower Adapter Plate
- •KPower Flywheel
- •KPower Aluminum Driveshaft
- •KPower Transmission Mounting Bracket
- •CAE Ultra Shifter
- •RaceComp SSR 3-way Coilovers
- •Verus Lower Control Arms
- •Adjustable Rear Upper Control Arms W/ Heim Joints
- •SPL Rear Adjustable Toe Links
- •BRG Sway Bar Relocation
- •Megan Racing Bushings

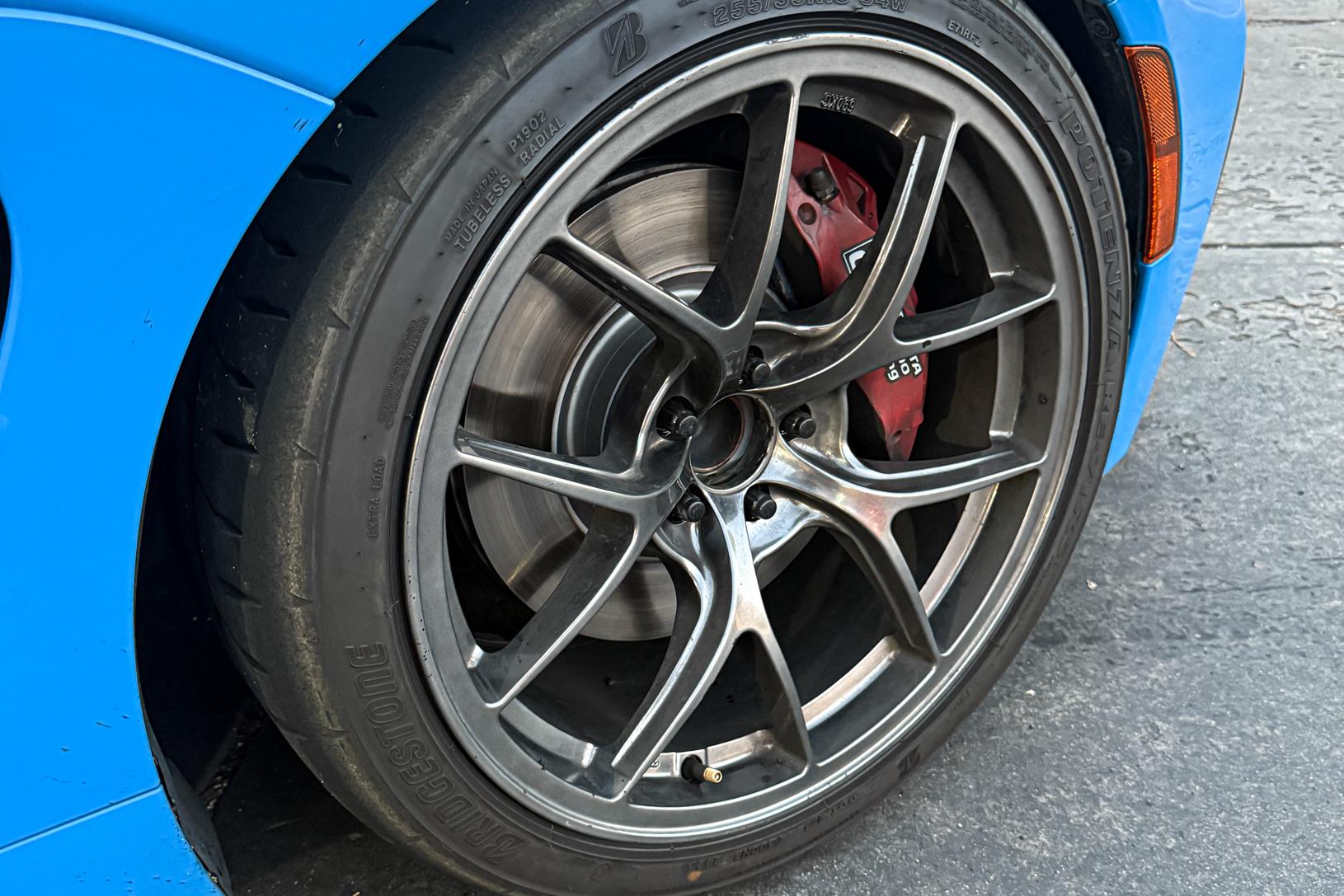

- •Brembo 4-piston Calipers
- •Endless ME20 Brake Pads
- •Upgraded Rotors

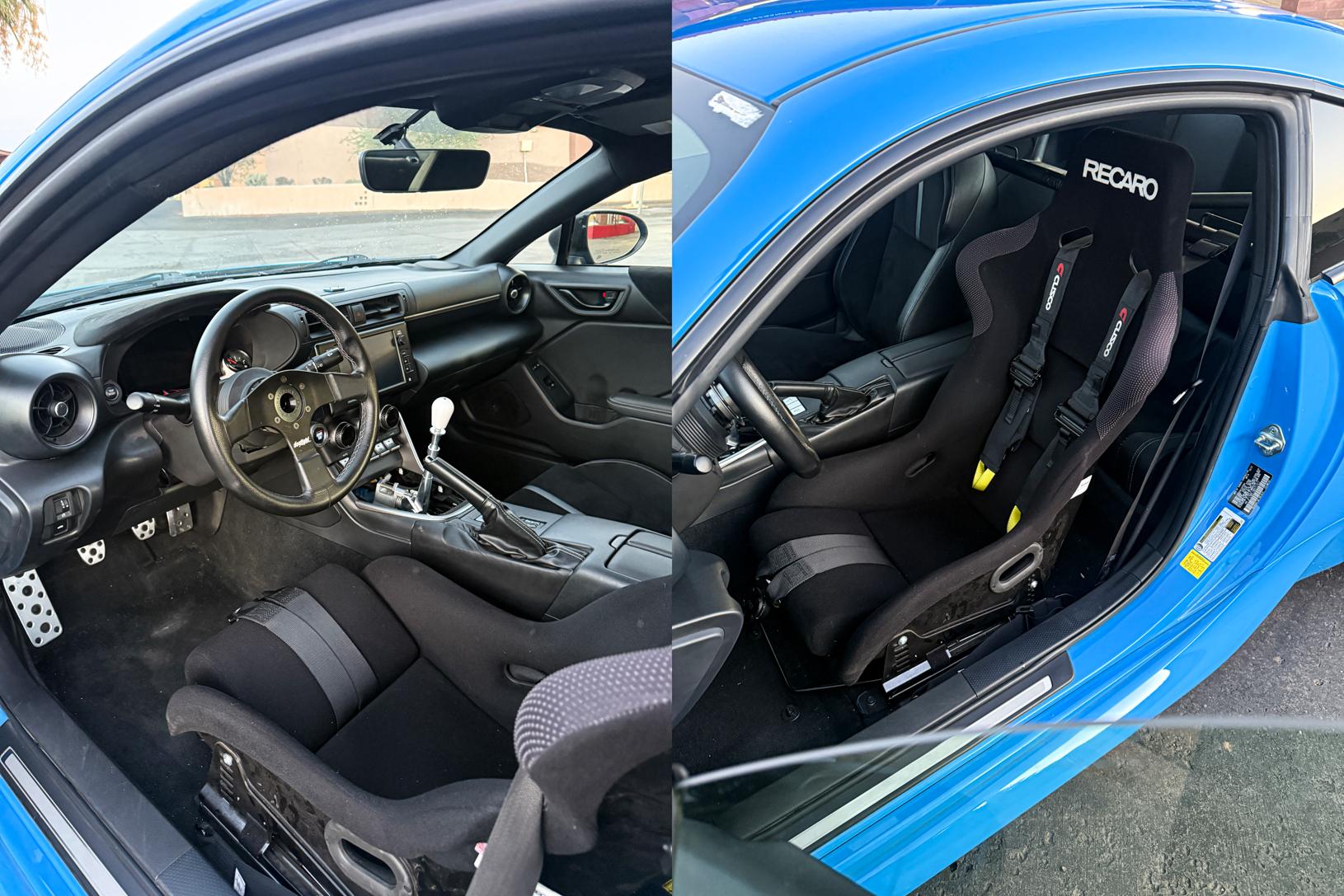

- •Recaro Bucket Seat
- •Cusco 6-point Harness
- •Bray Krause Harness Bar
- •Digital Dash
- •255/40/18 Bridgestone Potenza RE-71RS Tires
Recent Maintenance
- •Spark Plugs (05/2026)
- •Engine Oil Change
- •Transmission Fluid Flush (05/2026)
- •Differential Fluid Flush (05/2026)
Known Flaws
- •Minor oil leak from oil pan gasket
Seller notes
- •400hp at the wheels on high boost, 325 on low boost
- •Fully FlexFuel
- •Radio / AC functional
