1996 BMW M3 'S54 Swap'
Listed for $37,000Sold
2024.08.24–BMW-E36-S54-M3-1996_12024.08.24–BMW-E36-S54-M3-1996_22024.08.24–BMW-E36-S54-M3-1996_32024.08.24–BMW-E36-S54-M3-1996_42024.08.24–BMW-E36-S54-M3-1996_52024.08.24–BMW-E36-S54-M3-1996_62024.08.24–BMW-E36-S54-M3-1996_72024.08.24–BMW-E36-S54-M3-1996_82024.08.24–BMW-E36-S54-M3-1996_92024.08.24–BMW-E36-S54-M3-1996_102024.08.24–BMW-E36-S54-M3-1996_112024.08.24–BMW-E36-S54-M3-1996_122024.08.24–BMW-E36-S54-M3-1996_132024.08.24–BMW-E36-S54-M3-1996_142024.08.24–BMW-E36-S54-M3-1996_152024.08.24–BMW-E36-S54-M3-1996_162024.08.24–BMW-E36-S54-M3-1996_17
Contact Seller
Reach out to the owner of this 1996 BMW M3 'S54 Swap'
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
The Build

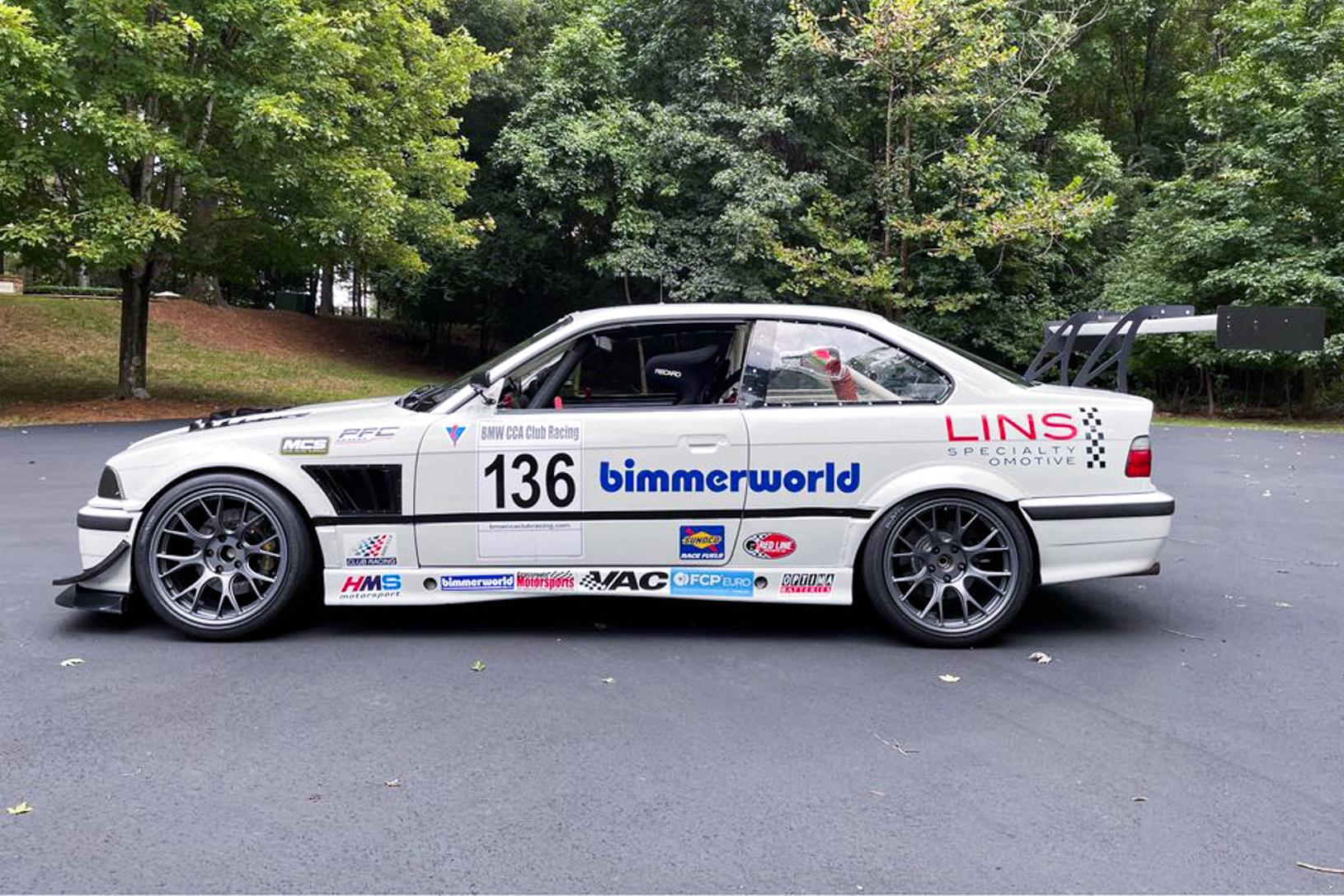

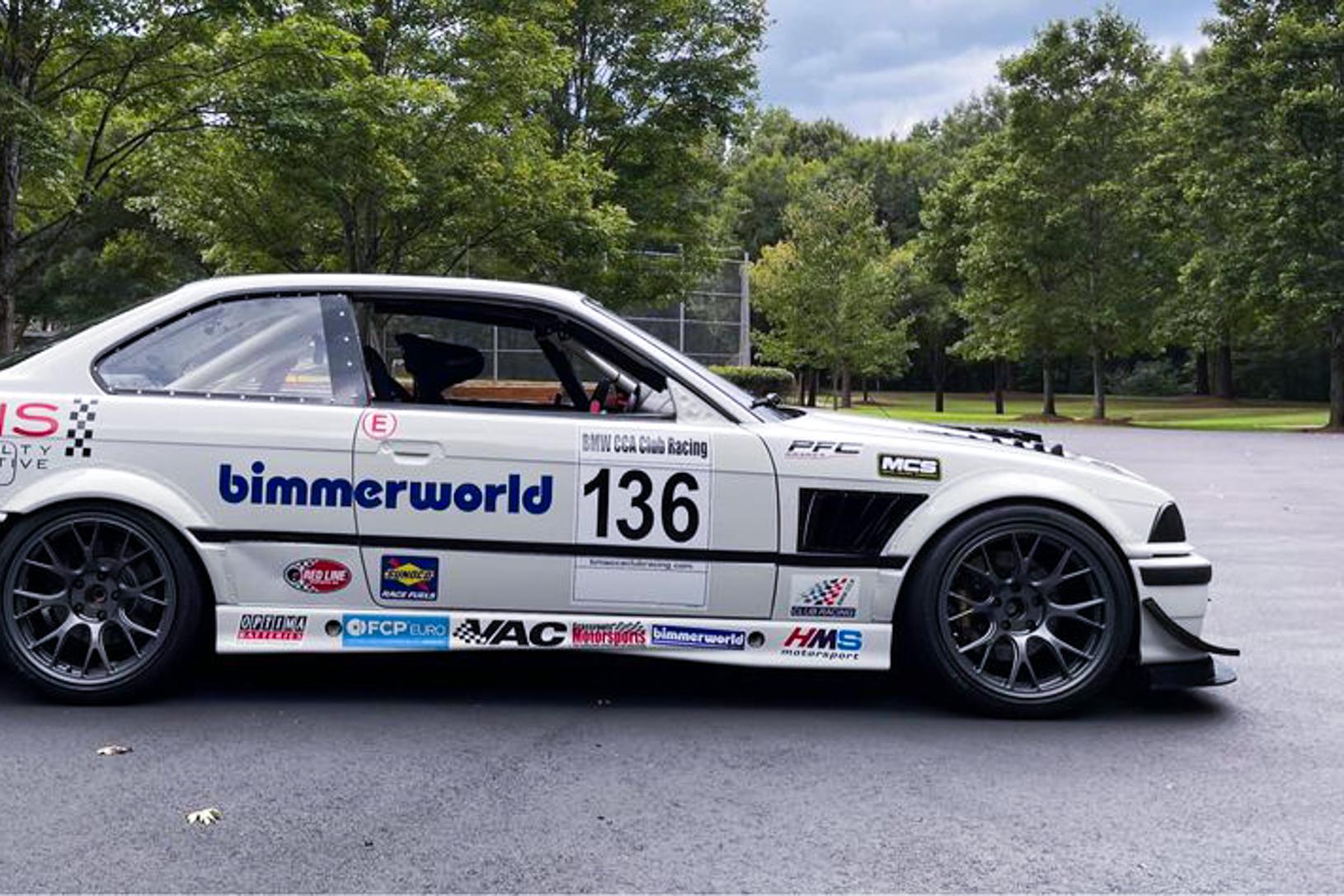

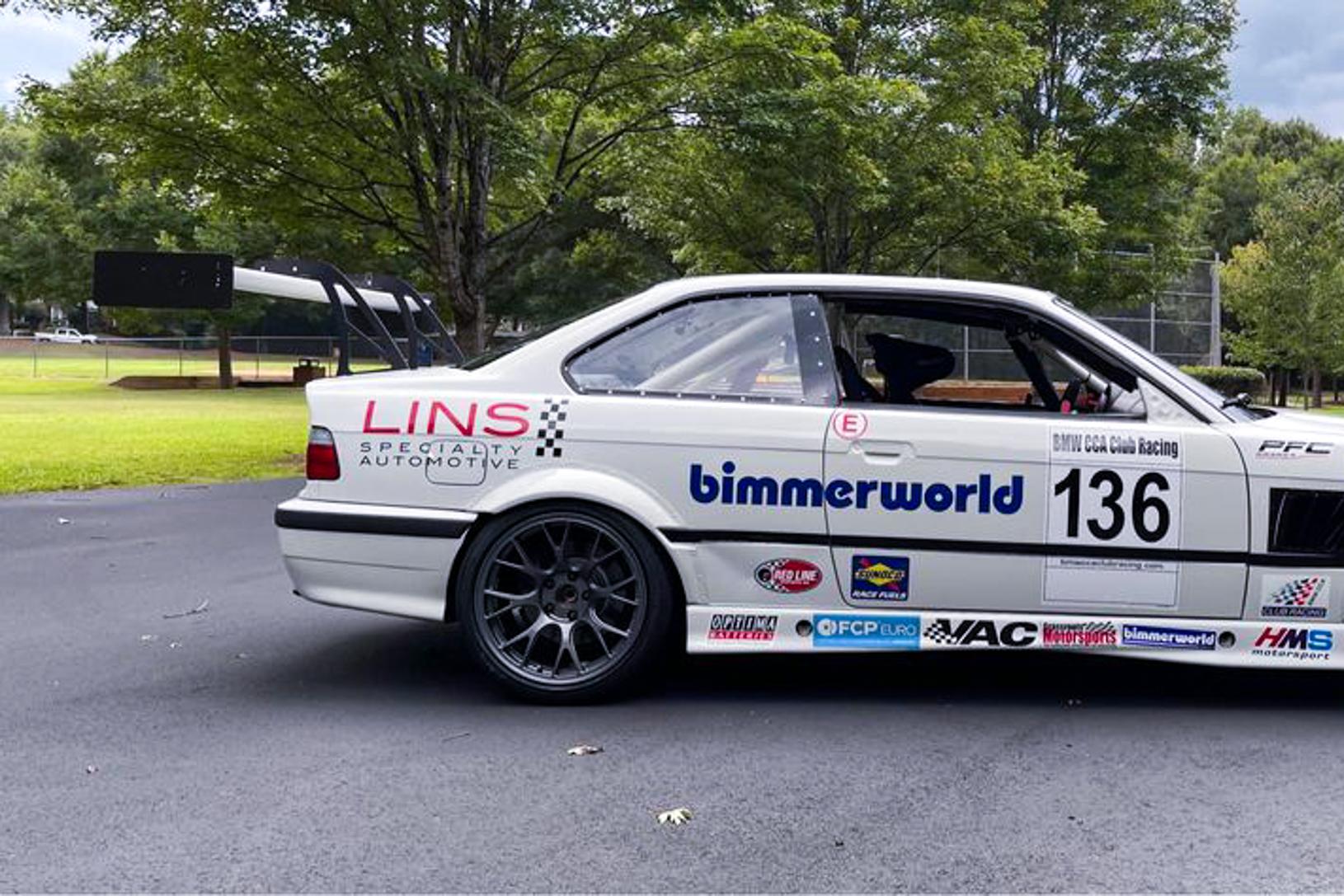

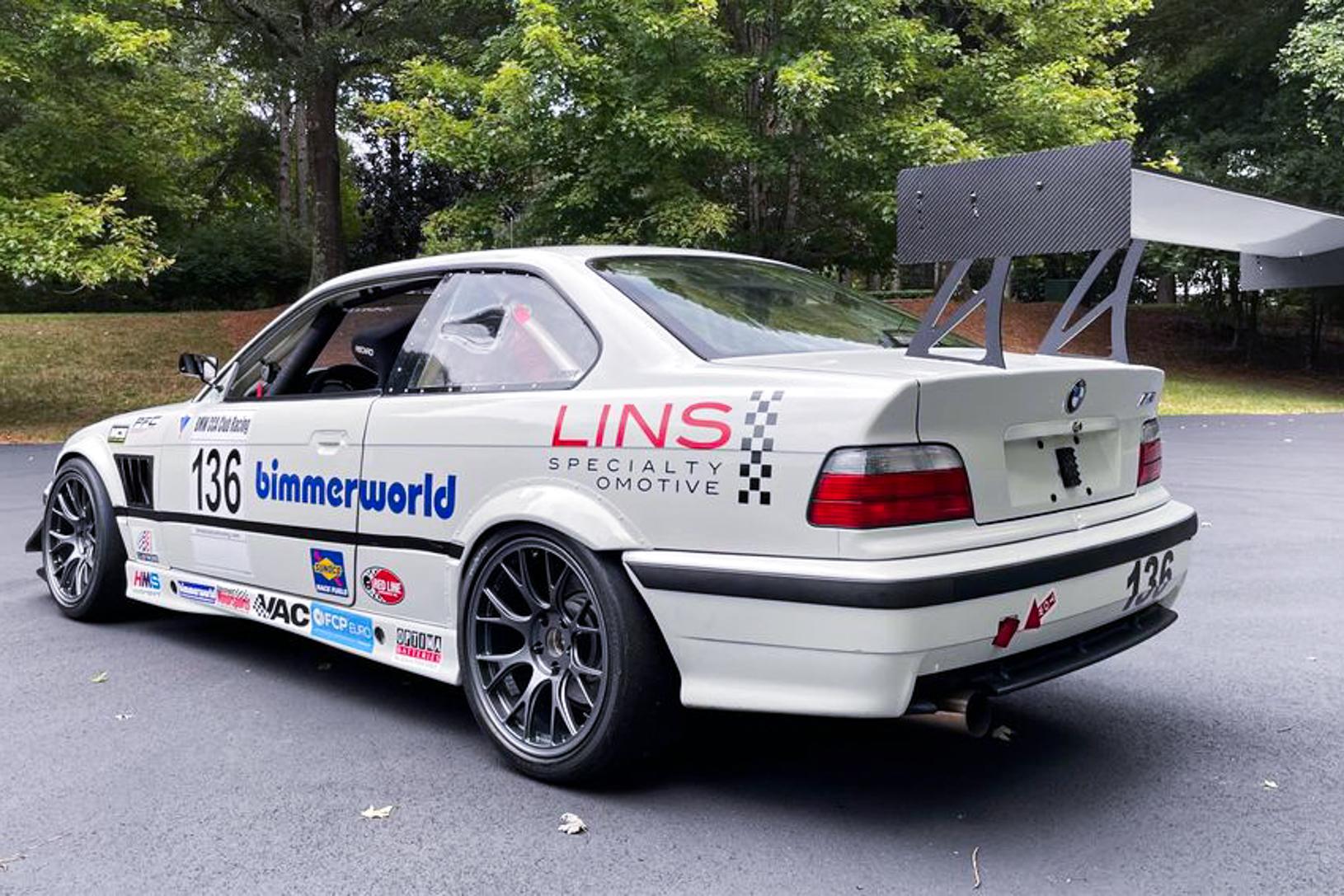

1996 BMW M3 'S54 Swap'
Overview

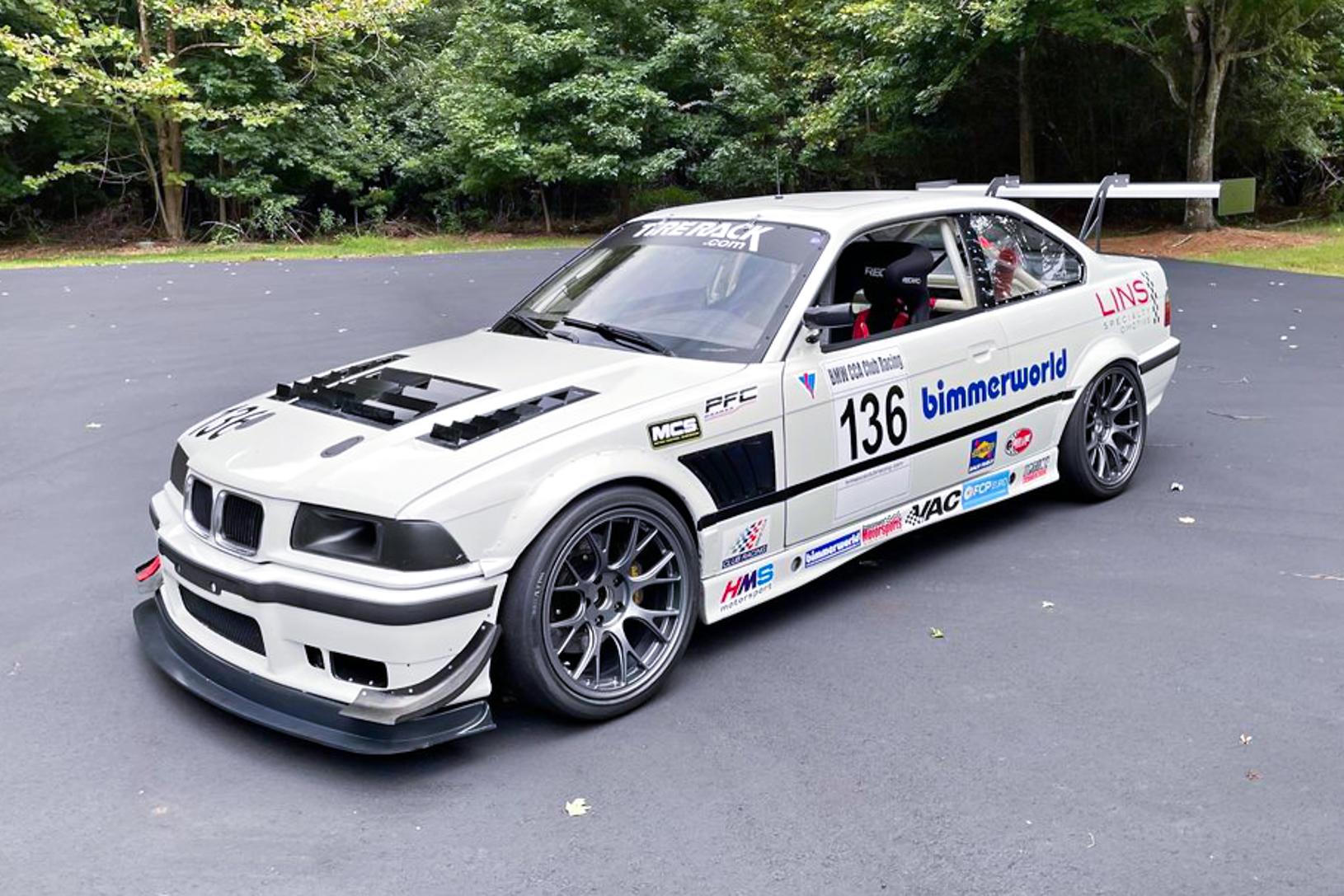

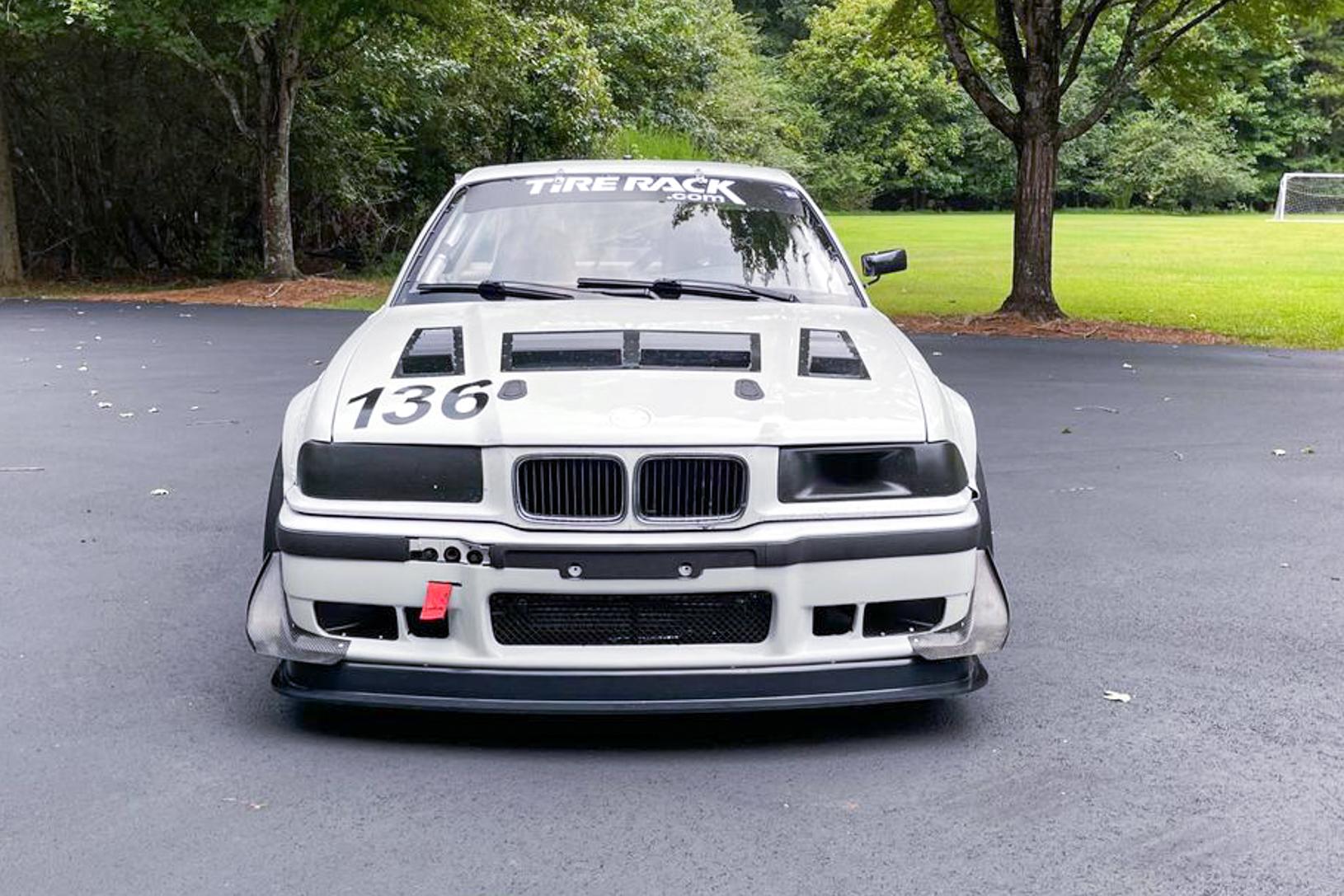

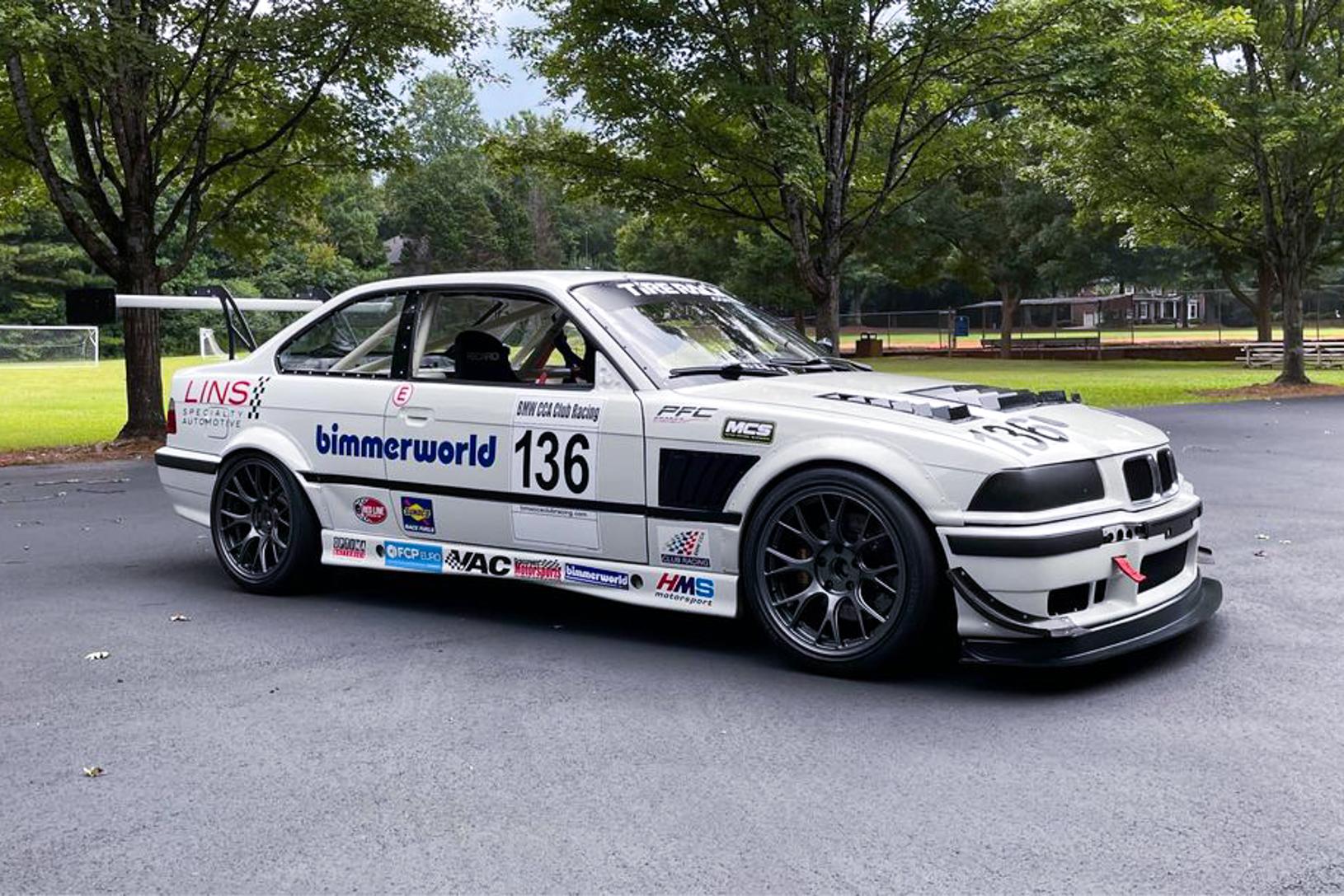

Transformed into a BMW CCA IP race car over the course of more than a decade, this E36 M3 benefits from a S54 motor out of an E46 M3. It currently weighs in at 2,620 pounds and offers a generous 334hp at the rear wheels, and the motor was refreshed before the swap for peace of mind. Sporting a full roll cage and improved cooling, this is a proper build and we encourage anyone remotely interested to browse through the long list of upgrades.
- Unknown
- Clean
- 3.2L Inline-6
- 5-Speed Manual
- Chalk
- Black
- Private Party
- Suwanee, GA
Modifications

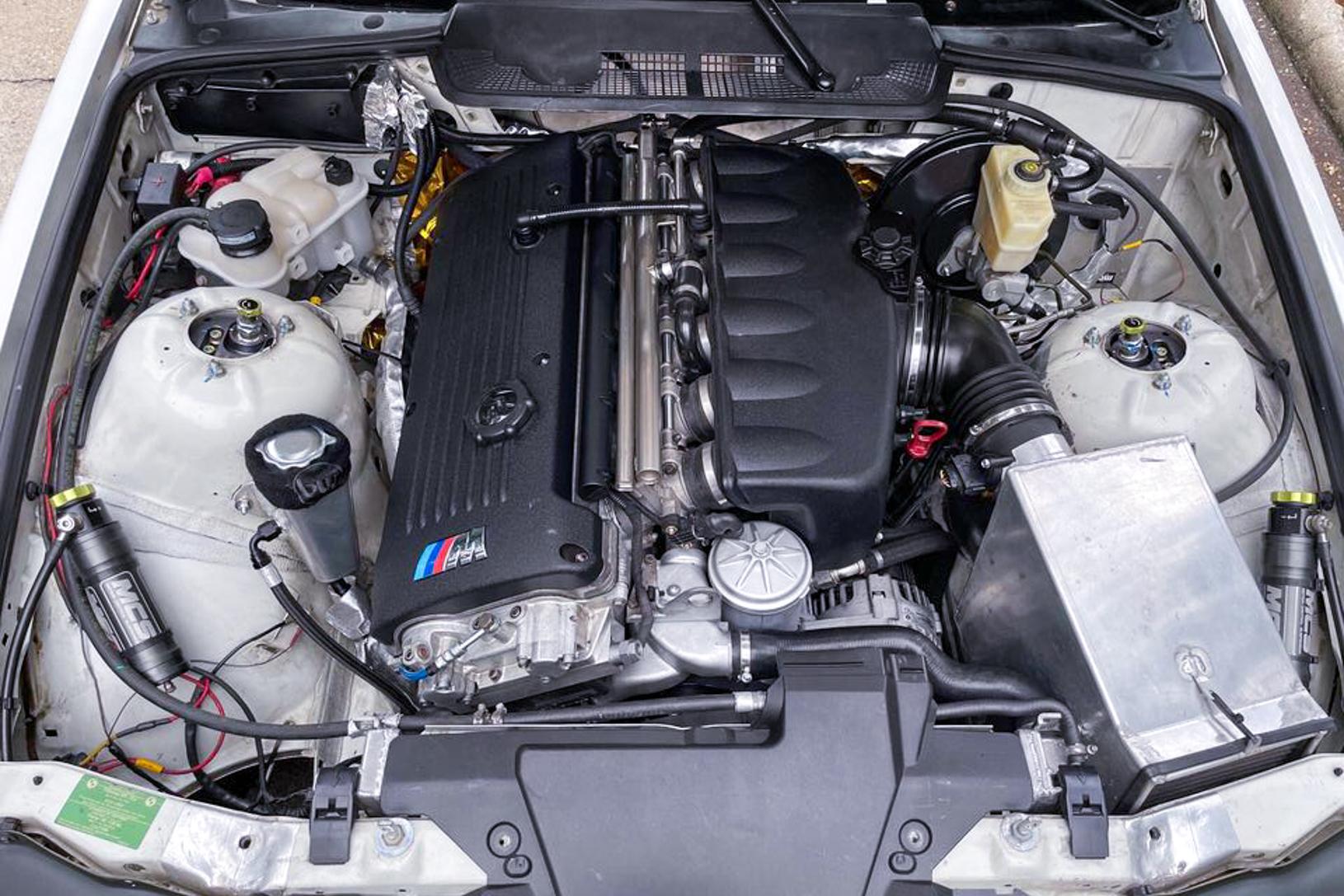

- •3.2L S54 Engine

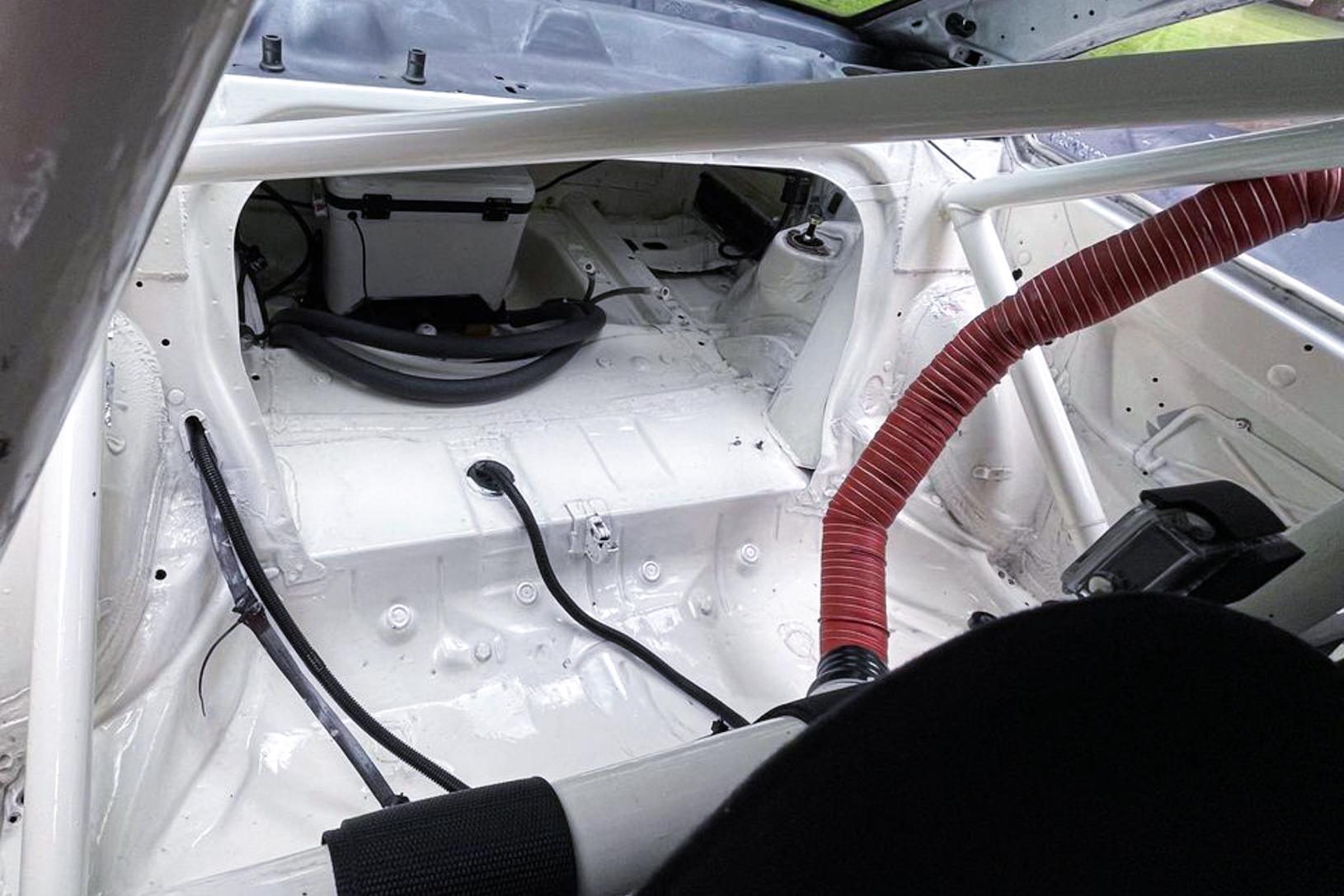

- •Full Roll Cage
- •Custom Body Wiring Harness
- •CSL Flash
- •Supersprint V1 Stepped Headers
- •Custom 3.5" Exhaust
- •Bimmerworld E36 Race Intake
- •Dyno Tune
- •Bimmerworld CSF Radiator
- •SPAL Electric Fan
- •Bimmerworld C&R Oil Cooler
- •Euro E36 Coolant Expansion Tank
- •Bimmerworld Power Steering Kit
- •Morehead Speed Works Motor Mounts

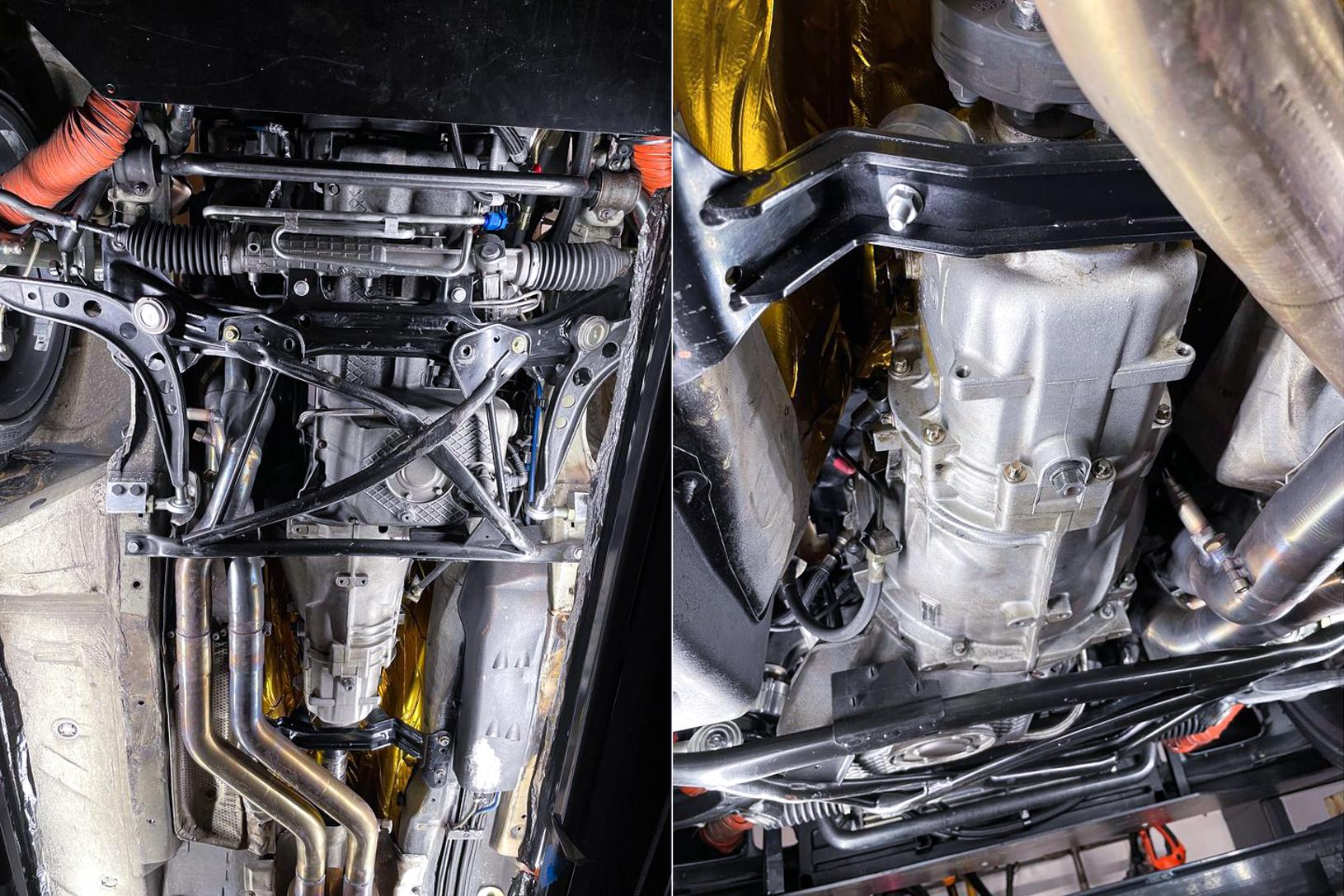

- •AKG Transmission Mounts
- •CAE Ultrashifter

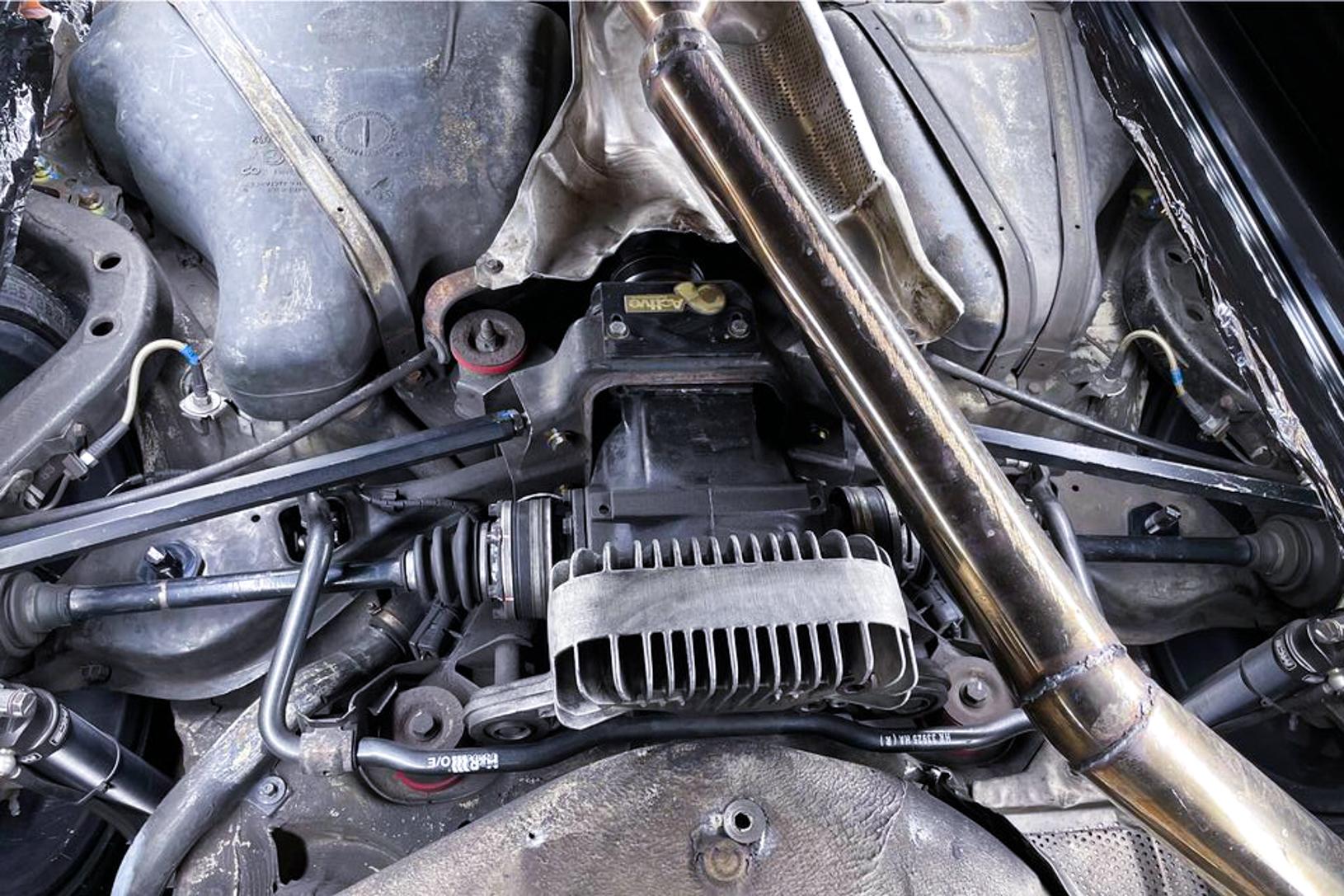

- •Blanton 3.64 4-Clutch Differential W/ Rogue Finned Cover
- •Z3 M Coupe S54 OEM BMW Booster
- •E46 M3 Master Cylinder / Reservoir
- •MCS 2-Way Remote Dampers
- •GC Race Camber Plates
- •Syncro Design Works Spherical RTABs
- •GC Spherical FCABs
- •Bimmerworld Adjustable Rear Control Arms
- •Rebuilt ZHP Steering Rack
- •AP Racing (Essex) Front Brakes
- •Hard Motorsport Brake Ducts
- •Bimmerworld Adjustable Endlinks
- •H&R Front / Rear Sway Bars
- •Mk60 ABS W/ Standalone Harness
- •Masha Fiberglass Doors / Hood
- •Bimmerworld/Five Star Fab Lexan Windshield
- •Condor Lexan Rear Quarter Windows
- •Race Louvers RX Center Hood / Side Hood / Fender Louvers

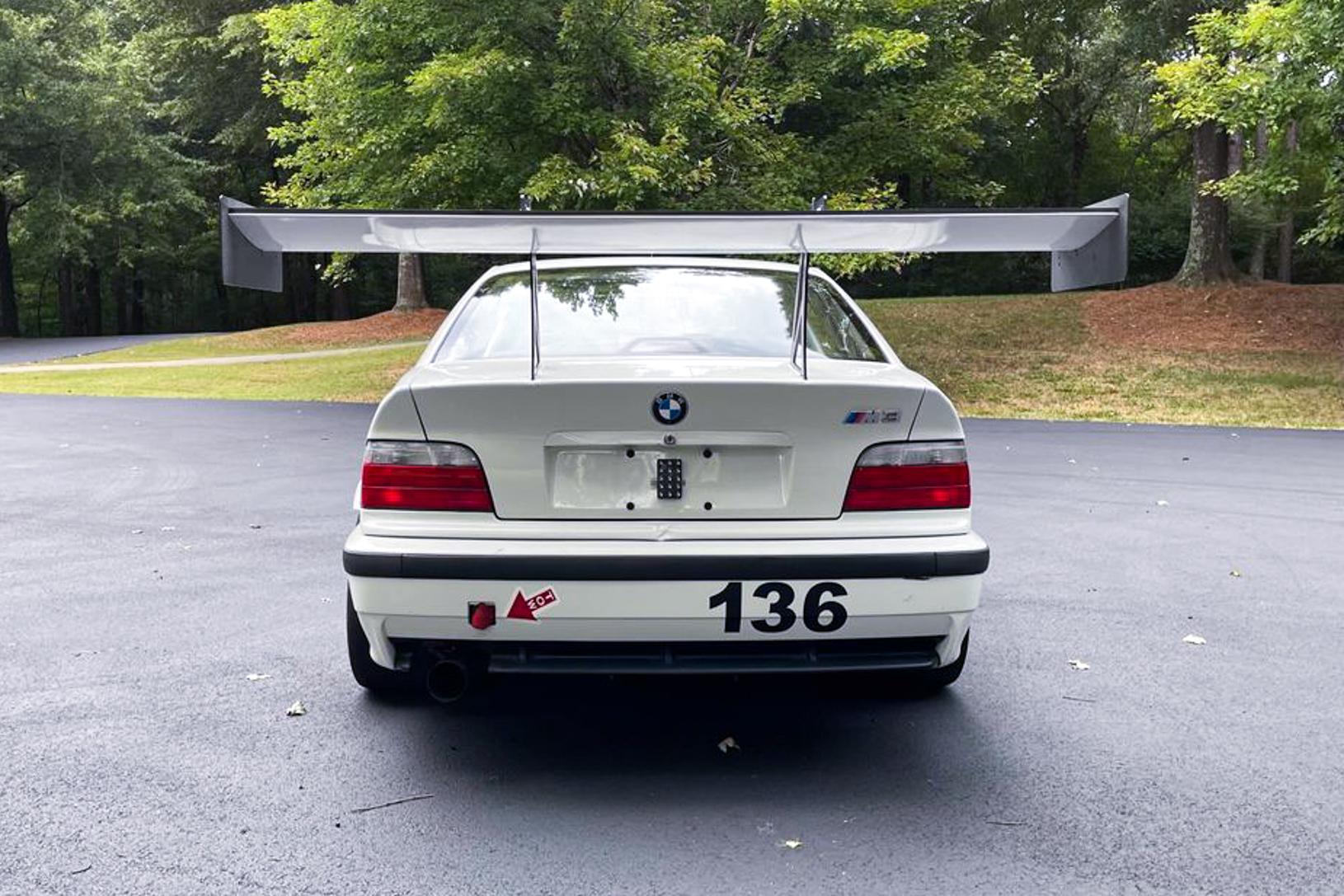

- •Klaus Composites Carbon Swan Neck "GTLD" Wing
- •Custom Carbon Splitter
- •Bimmerworld Carbon Dive Planes
- •S2R Headlight Duct / Blank

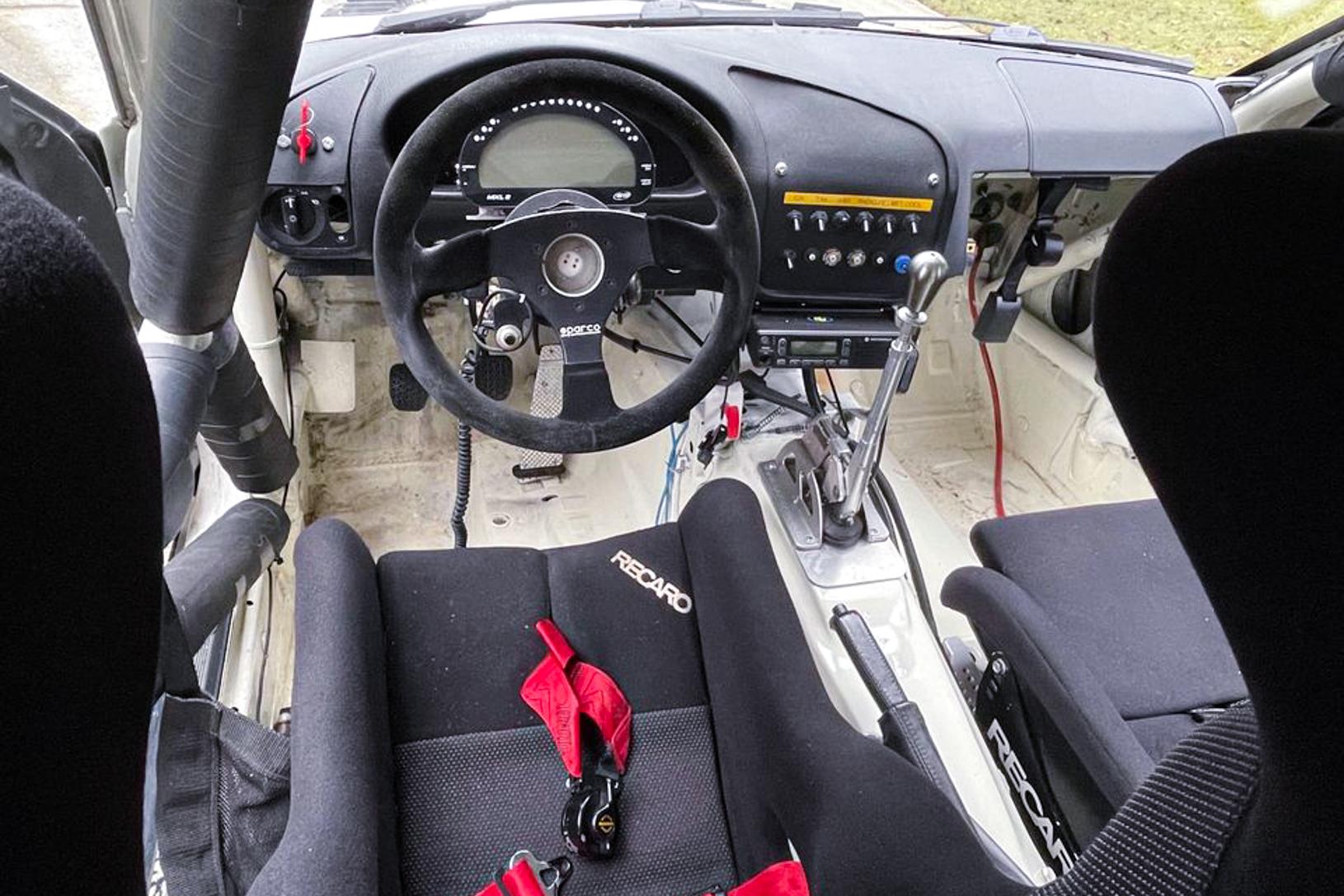

- •AIM MXL2 Dash

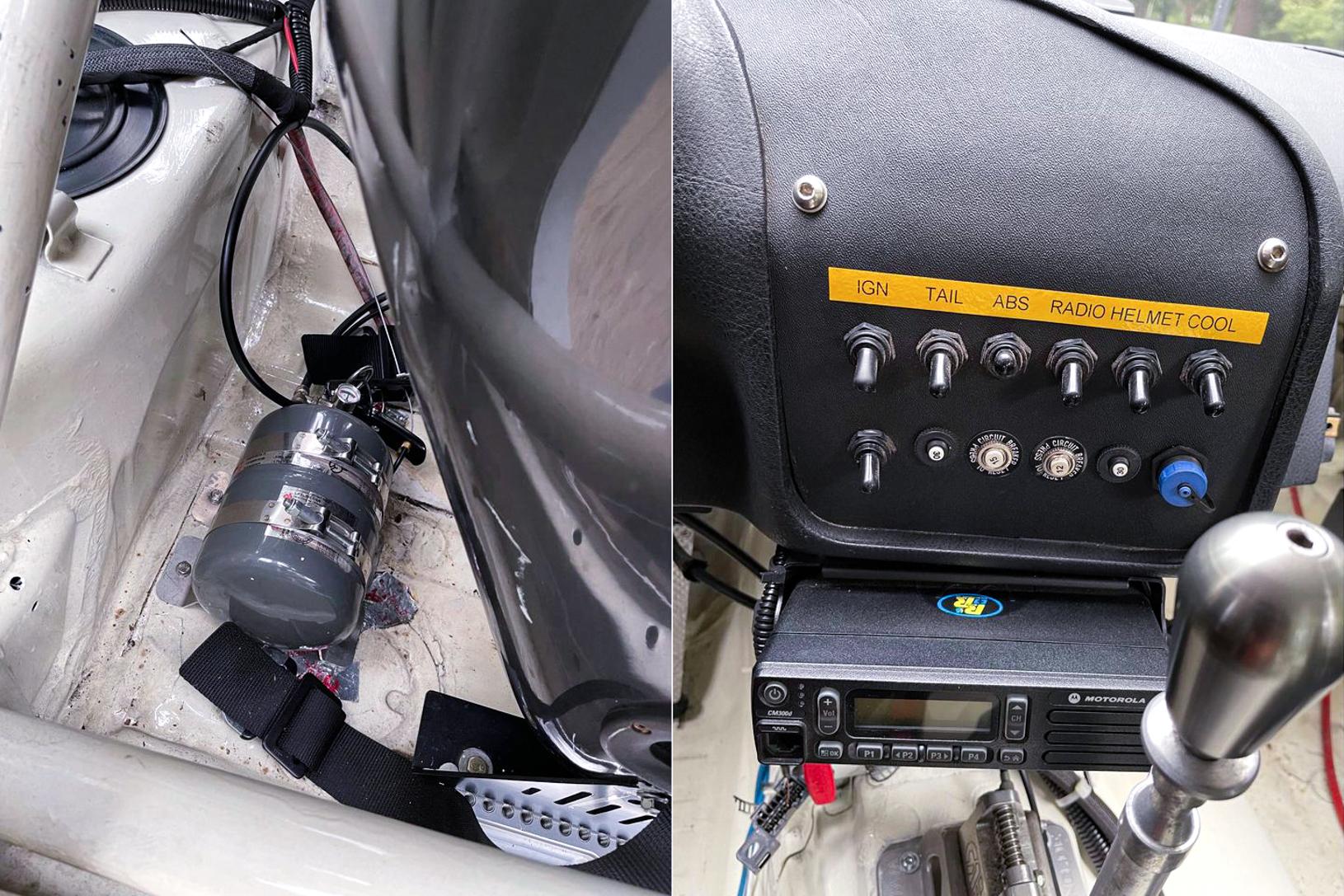

- •Custom Switch Panel W/ Circuit Breakers

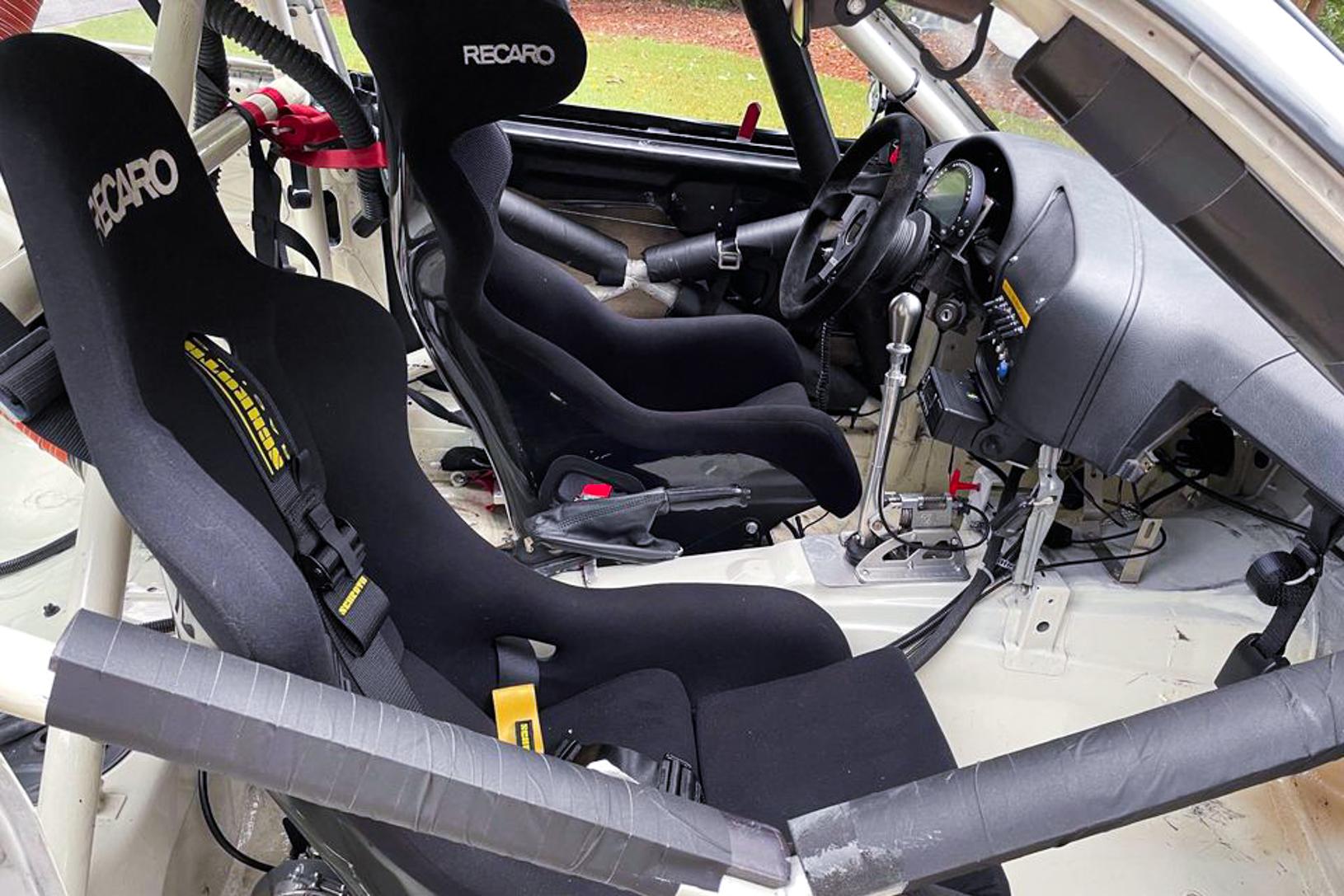

- •Recaro SPG Pro Racer Seat (2024 Date)
- •Recaro Pole Position Passenger Seat (Expired)
- •Schroth HANS Belts (Expired 2022)
- •Teamtech Window Net (Expired 2024)
- •Schroth FIA Center Net (2027 Date)
- •Coolshirt System
- •Helmet Blower
- •Lifeline Zero 360 2.25kg Mechanical Fire System
- •Racing Radios Motorola "Long Track" Digital System
- •Corner Balanced
- •MSI Coated Wheel Studs / Lug Nuts
- •18" Bimmerworld TA 16 Wheels (Two Sets)
Recent Maintenance
- •Front Brake Rotors
- •Rebuilt Rear Brake Calipers W/ Brass Guide Pins
- •Engine Refreshed
- •ACL Bearings
- •Head Refreshed (Valve Job / Surface)
- •VANOS Rebuild W/ Beisan Kit
- •VAC Oil Pump Disc
- •Pulleys
- •Tensioners
- •Water Pump
- •Thermostat
- •Hoses
- •Cam Sensors
- •Knock Sensors
- •Throttle Actuators
- •Throttle Pedal Potentiometer (S54 Z3 M)
