The Build
Overview
Sporting a built high-revving S54 engine out of an E46 M3, this E36 M3 has been gutted and fully prepped for track duty. The engine offers 321hp at the wheels thanks to extensive head work completed by Lang Racing including supertech valve springs and a 5-angle valve job, and the bottom end was built with reliability in mind with forged pistons and CP Carillo Pro H Rods. A lightweight flywheel reduces parasitic losses while a beefier clutch puts the power down reliably, TC Kline double-adjustable dampers allow it to be dialed-in properly for track conditions, and an Essex AP Racing Competition front brake kit keeps braking consistent.
- 125,000
- Clean
- 3.2L Inline-6
- 5-Speed Manual
- Avus Blue
- Black
- Kevin C.
- Private Party
- Queen Creek, AZ
- Available
Modifications
- •S54 Engine (321 WHP / 265 Ft-lb Torque)
- •Lang Racing Stage 2 Cylinder Head Rework
- •Supertech Valve Spring Kit
- •Valve Guides / Seals
- •5-angle Valve Job
- •Cylinder Head Line Bore
- •CP-Carrillo Pro-H Connecting Rods
- •Mahle Forged Pistons
- •WPC-treated Rod Bearings
- •ARP Rod Bolts
- •Beisan Systems Rebuilt VANOS

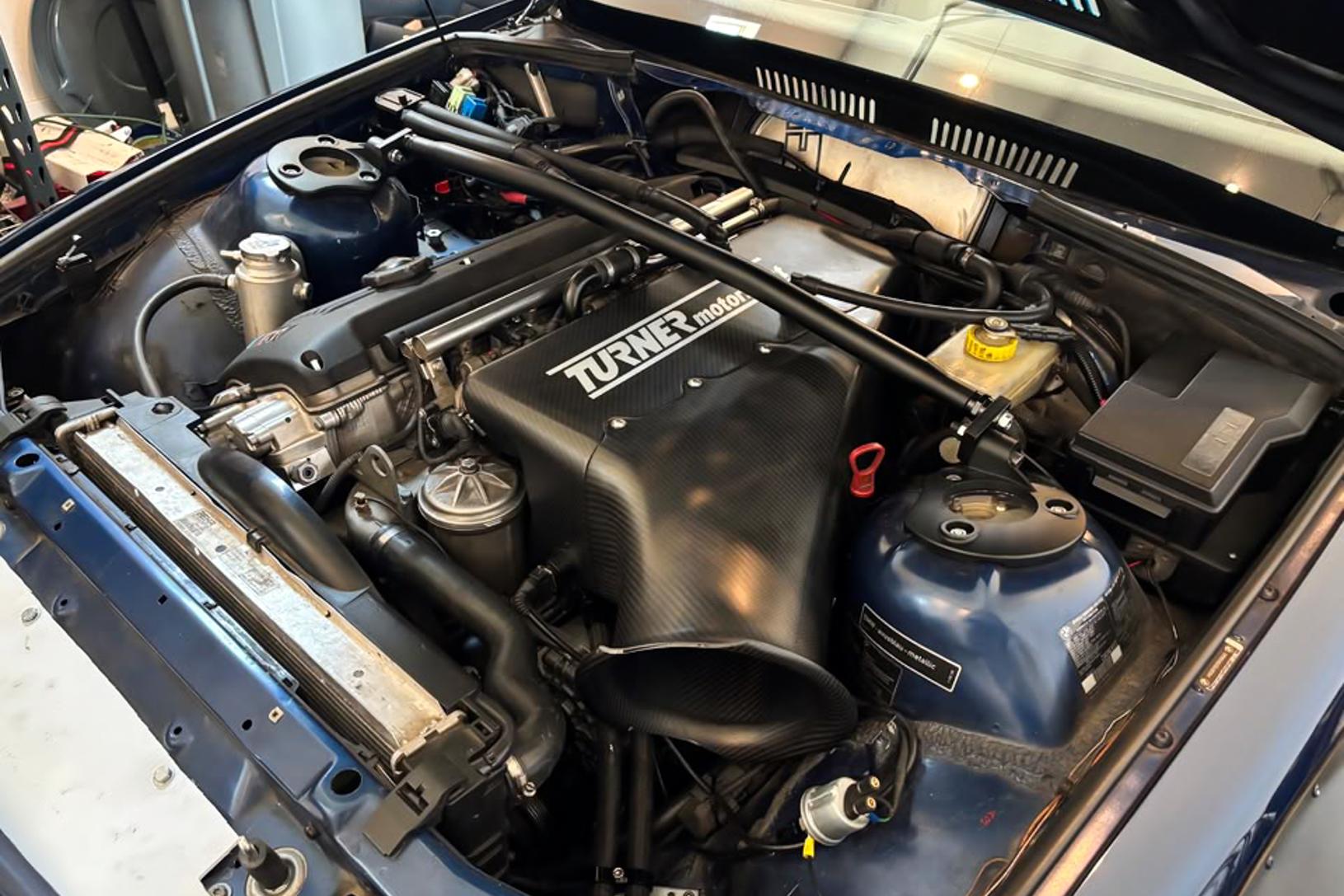

- •Turner Motorsport CSL Carbon Intake
- •DME MSS54HP CSL Conversion
- •Kassel Performance S54 E36 / MZ3 Plug-and-play Conversion Harness
- •MAP-based CSL Fuel Mapping
- •CSF Race-spec Dual-pass Oil Cooler
- •Turner Motorsport 4-chamber Oil Catch Can
- •SPAL Electric Fan W/ Dedicated Switch
- •BimmerWorld Fuel Starve Kit W/ Dual Pumps
- •Active Autowerke Ceramic-coated Headers
- •BimmerWorld Race Exhaust
- •Swappable Straight / Resonated Mid-pipe
- •Clutch Masters FX350 Clutch
- •Lightweight Flywheel
- •5-speed Manual Transmission
- •IRP V3 Self-centering Short Shifter
- •Revshift Polyurethane Engine Mounts
- •Revshift Polyurethane Transmission Mounts
- •Ground Control Camber / Caster Plates
- •TC Kline Double-adjustable Shocks W/ Ride Height AdjustmentTC
- •Adjustable Front Sway Bar
- •Adjustable Rear Sway Bar
- •Adjustable Rear Suspension Links
- •Solid Front Control Arm Bushings

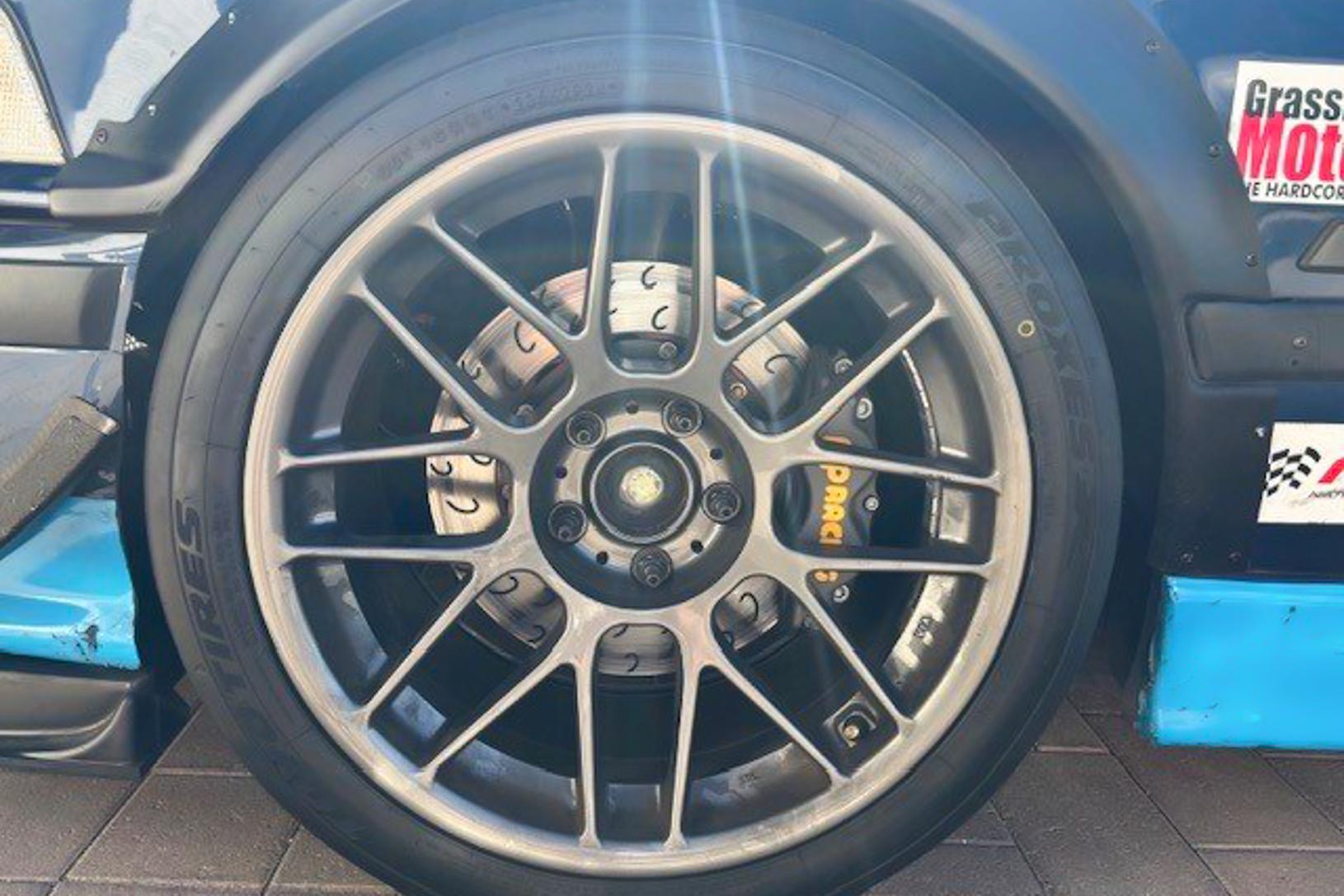

- •Essex AP Racing Competition Front Brake Kit (CP8350 Calipers / 325mm Rotors)
- •Ferodo DS1-11 Front Brake Pads
- •Ferodo DS1-11 Rear Brake Pads
- •Front Brake Ducting W/ Backing Plates
- •ECS Tuning Stainless Steel Brake Lines
- •BimmerWorld Front Dive Planes
- •MaxVelocity E36 M3 Evo II Track Splitter

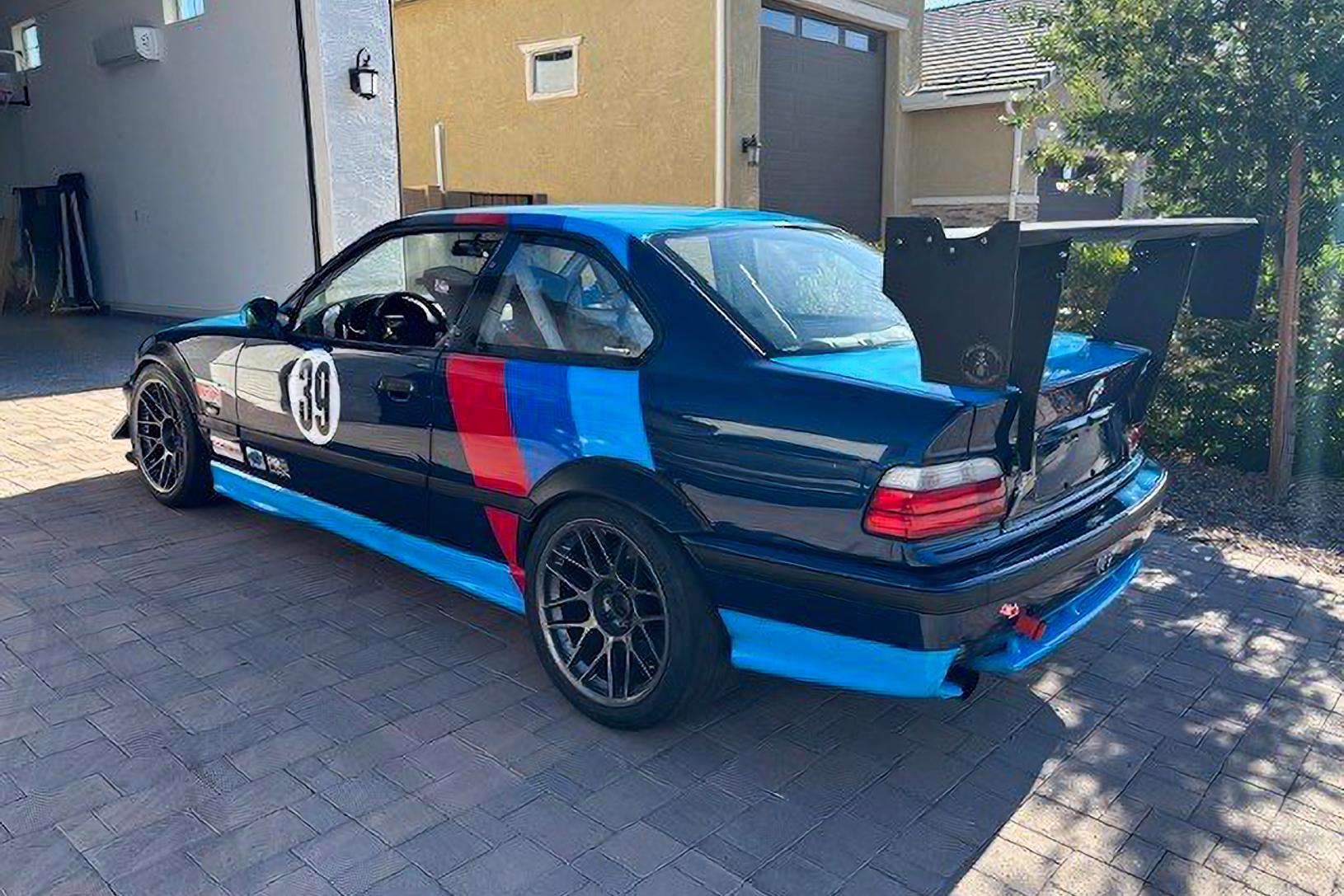

- •Nine Lives Racing Rear Wing
- •Nine Lives Racing Gurney Flap
- •Nine Lives Racing V2 End Plates
- •Hood Vents (3)
- •Arrow Hood Latches
- •HARD Motorsport B-pillar Wind Deflectors
- •Carbon Fiber Air Intake Headlight Delete
- •Carbon Fiber Sunroof Delete
- •HARD Motorsport Fender Flares
- •Lexan Rear Window Panels
- •OMP Halo Driver Seat
- •Sabelt CCS-622 2" 6-point Driver Harness
- •Sparco Passenger Seat
- •6-point Passenger Harness
- •6-pole Electrical Kill Switch
- •NRG Quick-release Hub

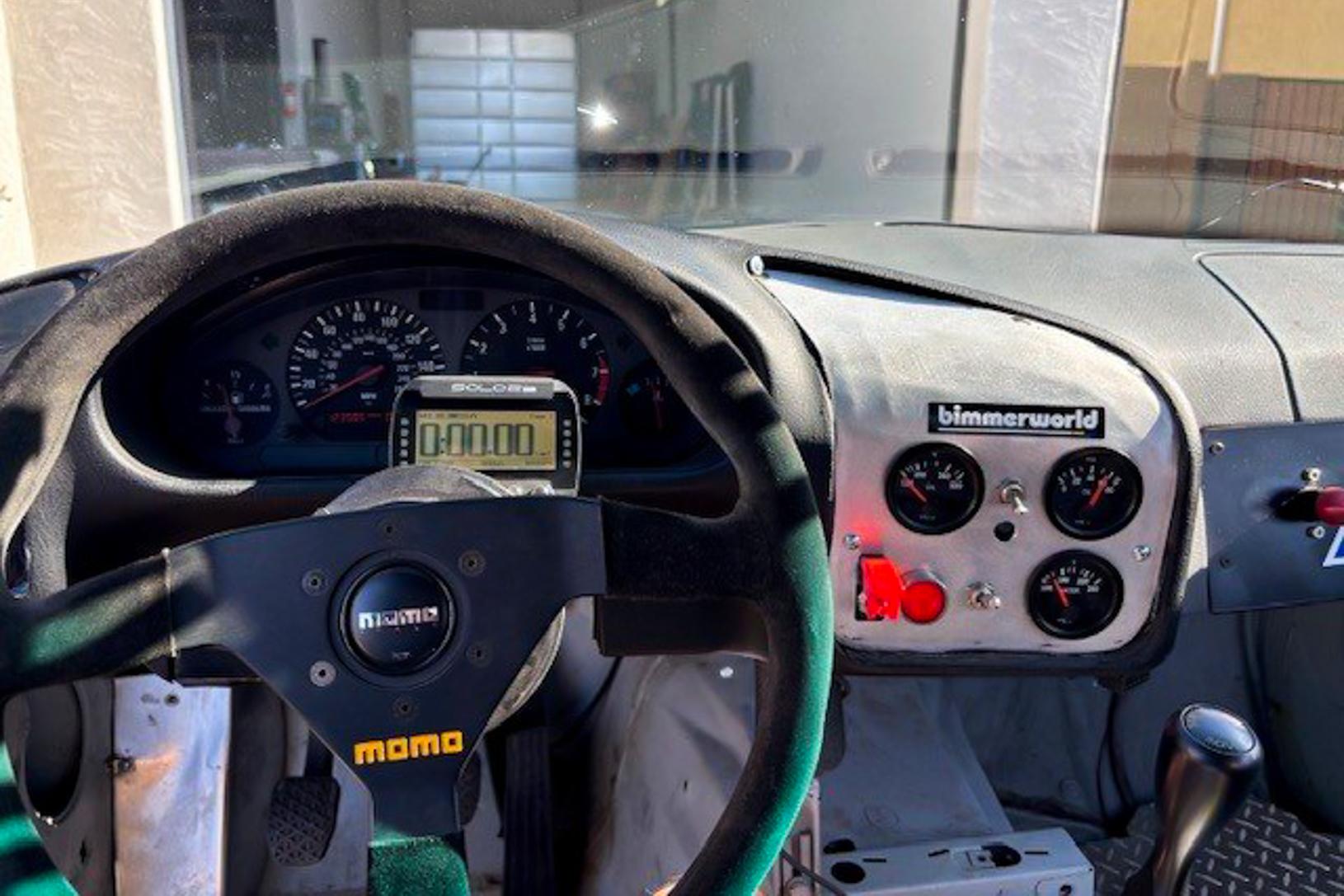

- •MOMO Steering Wheel

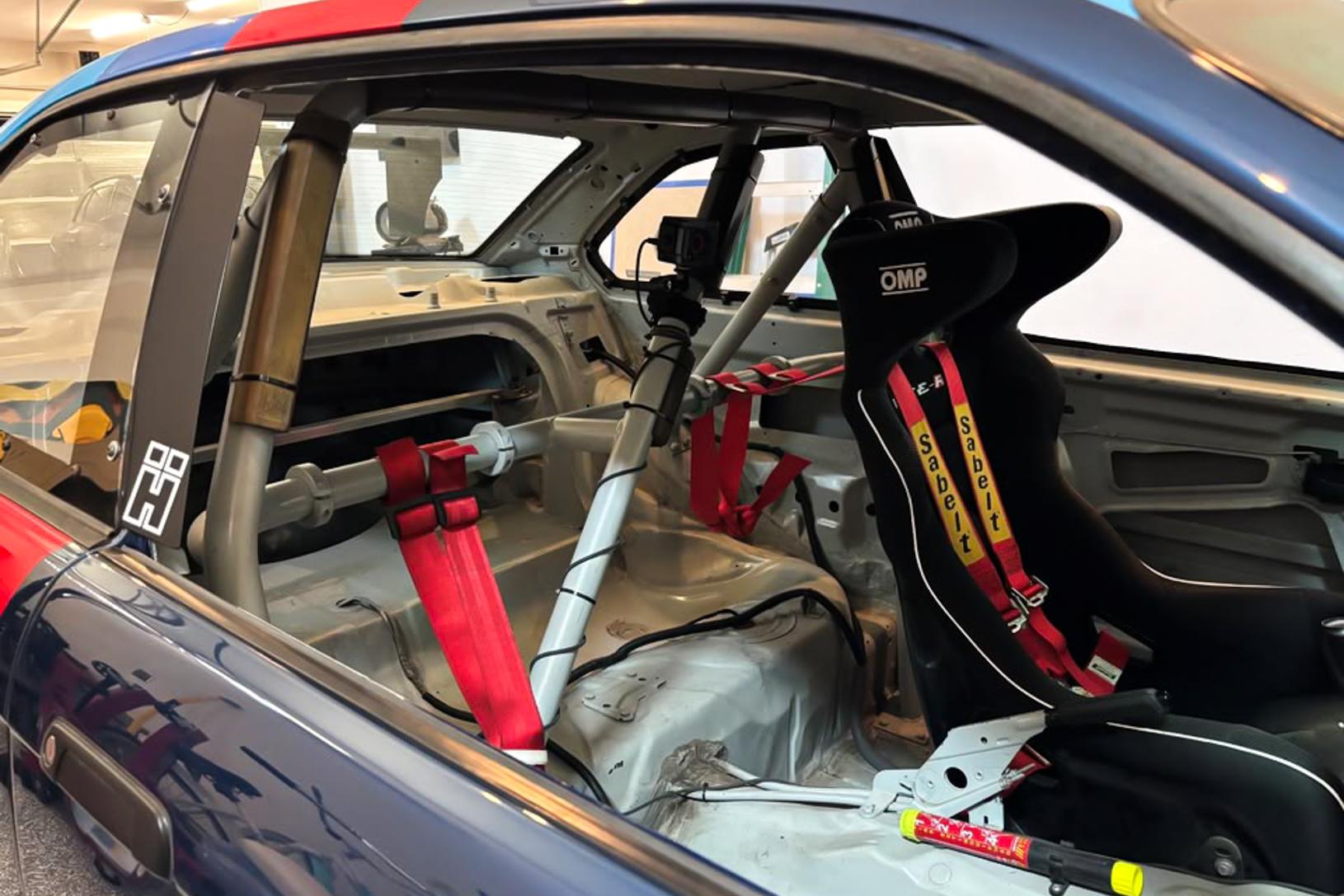

- •Kirk Racing 4-point Roll Bar W/ Reinforced Floor Mounts
- •Odyssey ODS-AGM30E Lightweight Battery
- •VDO Analog Coolant Temperature Gauge
- •VDO Analog Oil Temperature Gauge
- •VDO Analog Oil Pressure Gauge
- •HARD Motorsport Firewall Block-off Plate
- •18x10" APEX ARC-8 Anthracite Wheels
- •275/35R18 Toyo RR Tires
Recent Maintenance
- •Fuel Injector Service (2025)
- •Alternator
- •Thermostat
- •Water Pump
- •Timing Chain Guides
- •Reinforced Rear Subframe
- •Throttle Actuator
Seller notes
- •Less than 2k miles since engine rebuild
